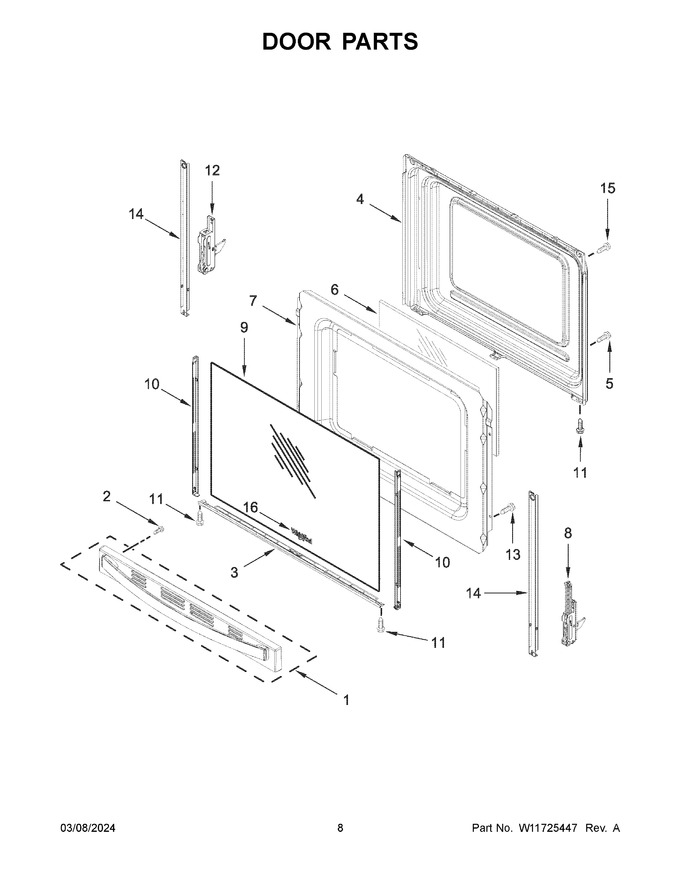

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11730234		Handle And Vent Assembly (stainless)   (Replaces: W11353054)			Immediately	$ 213.83
2	W10896982		Screw   (Replaces: W10465158)				$ 7.56
3	W11569689		Trim, Lower (black)   (Replaces: W11444043)			Immediately	$ 54.07
4	WP9761344		Liner, Door   (Replaces: 9761344)			Immediately	$ 335.60
5	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 7.87
6	W11399628		Glass, Inner   (Replaces: W11367326)				$ 154.51
7	W11685635		Retainer, Insulation   (Replaces: W11380221)				$ 169.46
8	WPW10299225		Hinge, Active   (Replaces: W10299225)			Immediately	$ 90.51
9	W11741357		Glass, Outer Door (black)   (Replaces: W11624777)				$ 163.40
10	W10761018		Trim, Door (black (left))   (Replaces: W10746436)			Immediately	$ 49.32
11	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 7.92
12	WPW10299227		Hinge, Door (passive)   (Replaces: W10299227)			Immediately	$ 63.67
13	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.43
14	W11502236		Strap, Door   (Replaces: W11379944)			Immediately	$ 24.91
15	WPW10200660		Screw   (Replaces: W10200660)			Immediately	$ 7.42
16	W11178521		Badge   (Replaces: W10884775)			Immediately	$ 56.82
10A	W10761014		Trim, Door (black (right))   (Replaces: W10746435)			Immediately	$ 65.66
