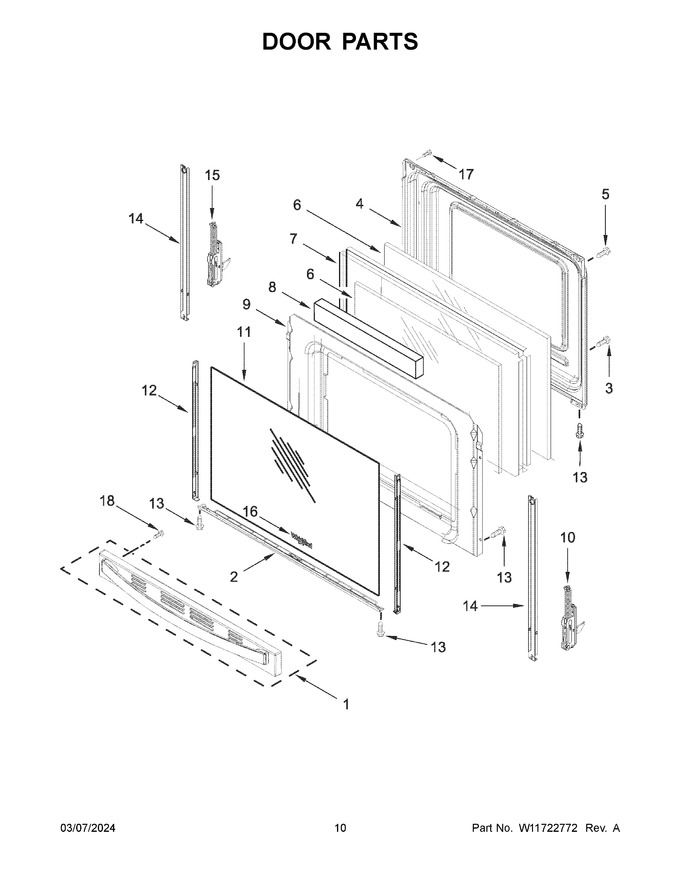

01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Manifold Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11707071 | Handle And Vent Assembly (black) (Replaces: W11353052) |
|
$ 155.19 | |||||
| 2 | W11569689 | Trim, Lower (black) (Replaces: W11444043) |
|
Immediately | $ 54.07 | ||||
| 3 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 4 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 335.60 | ||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 6 | WP8053948 | Glass, Inner (Replaces: 9758162) |
|
Immediately | $ 208.85 | ||||
| 7 | WPW10316950 | Frame, Glass (Replaces: W10316950) |
|
Immediately | $ 81.08 | ||||
| 8 | WPW10278991 | Insulation, Door Strip (Replaces: W10278991) |
|
Immediately | $ 91.23 | ||||
| 9 | W11539580 | Retainer, Insulation (Replaces: W11380222) |
|
$ 209.98 | |||||
| 10 | WPW10440013 | Hinge, Door (active) (Replaces: W10388635) |
|
Immediately | $ 57.42 | ||||
| 11 | W11741357 | Glass, Outer Door (black) (Replaces: W11624777) |
|
$ 163.40 | |||||
| 12 | W10761018 | Trim, Door (black (left)) (Replaces: W10746436) |
|
Immediately | $ 49.32 | ||||
| 13 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 7.92 | ||||
| 14 | W11502236 | Strap, Door (Replaces: W11379944) |
|
Immediately | $ 24.91 | ||||
| 15 | WPW10440013 | Hinge, Door (active) (Replaces: W10440013) |
|
Immediately | $ 57.42 | ||||
| 16 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 56.82 | ||||
| 17 | WPW10200660 | Screw (Replaces: W10200660) |
|
Immediately | $ 7.42 | ||||
| 18 | W10896982 | Screw (Replaces: W10465158) |
|
$ 7.56 | |||||
| 11A | W11741358 | Glass, Outer Door (white) (Replaces: W11624778) |
|
Immediately | $ 165.17 | ||||
| 12A | W10761014 | Trim, Door (black (right)) (Replaces: W10746435) |
|
Immediately | $ 65.66 | ||||
| 12B | WP8523172 | Trim, Door (white (left)) (Replaces: 8523172) |
|
Immediately | $ 62.94 | ||||
| 12C | WP8523166 | Trim, Door (white (right)) (Replaces: 8523166) |
|
Immediately | $ 75.81 | ||||
| 1A | W11726984 | Handle And Vent Assembly (white) (Replaces: W11353053) |
|
Immediately | $ 167.34 | ||||
| 2A | W11594186 | Trim, Lower (white) (Replaces: W11444042) |
|
Immediately | $ 55.23 |
