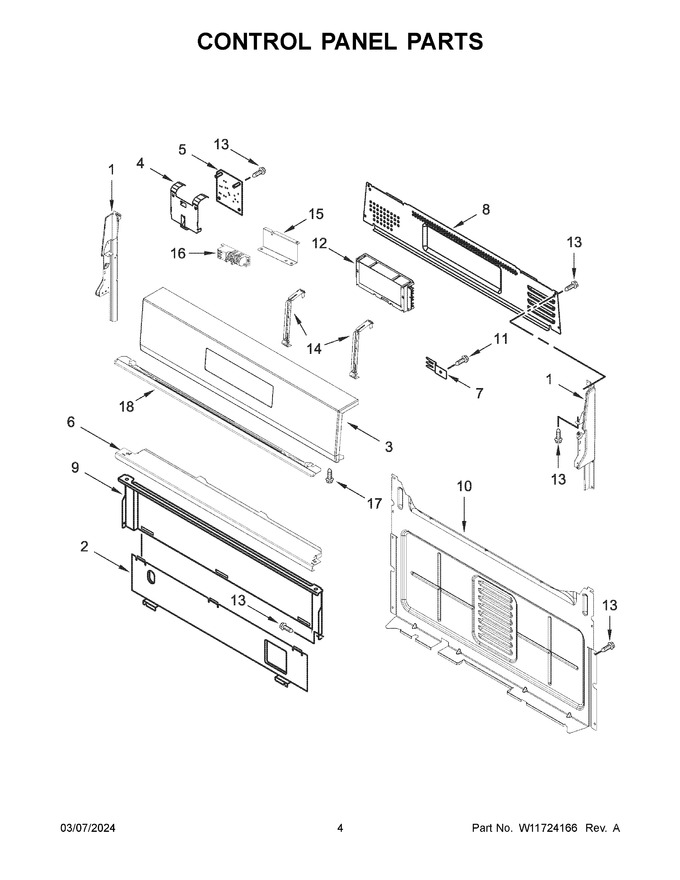

03 - Control Panel Parts
04 - Chassis Parts
05 - Manifold Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11213290 | Endcap (black (left)) |
|
$ 312.99 | |||||
| 2 | 8053505 | Shield, Heat |
|
$ 149.30 | |||||
| 3 | W11714006 | Panel, Control (black) (Replaces: W11385182) |
|
$ 212.26 | |||||
| 4 | W10762981 | Bracket, Mounting |
|
$ 68.78 | |||||
| 5 | W10898291 | Module, Spark (Replaces: W10818365) |
|
Immediately | $ 329.08 | ||||
| 6 | W10516123 | Bracket, Console Mounting |
|
- | |||||
| 7 | 8523412 | Bracket, Rear Cooktop |
|
$ 151.11 | |||||
| 8 | W10198745 | Cover, Upper |
|
$ 116.01 | |||||
| 9 | W10192841 | Shield, Heat |
|
$ 96.02 | |||||
| 10 | W11676199 | Cover, Back |
|
- | |||||
| 11 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 12 | W11707254 | Control, Range (lcc190) (black) (Replaces: W11637091) |
|
$ 403.05 | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 14 | W11713812 | Bracket, Control (Replaces: W11290750) |
|
$ 27.33 | |||||
| 15 | W10901176 | Bracket, Ignitor (Replaces: W10797001) |
|
- | |||||
| 16 | WPW10110491 | Module, Spark (Replaces: W10110488) |
|
Immediately | $ 290.17 | ||||
| 17 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.80 | ||||
| 18 | W11443964 | Bracket, Eye Brow (black) |
|
$ 200.19 | |||||
| 1A | W11213292 | Endcap (black (right)) |
|
$ 64.49 |
