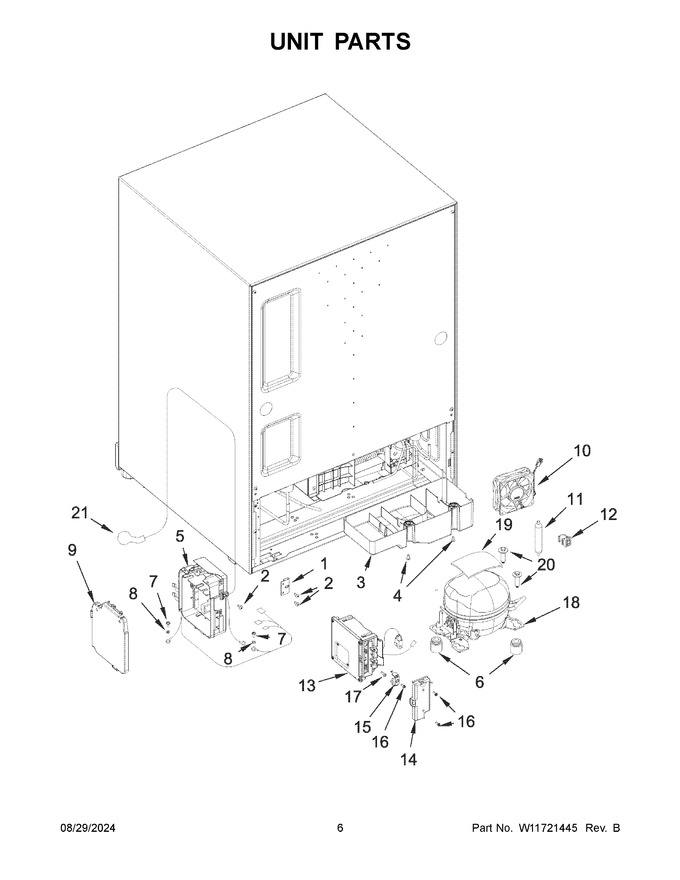

04 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11579515		Clamp, Cord   (Replaces: W11576947)		Appelez-nous	-
2	W11371097		Screw		Appelez-nous	-
3	W11360241		Water Pan, Evaporator		Appelez-nous	-
4	W11375763		Screw		Appelez-nous	-
5	W11360243		Assembly, Pcb Box (includes Power Cord)				$ 482.69
6	W11360596		Mount, Compressor		Appelez-nous	-
8	W11266077		Washer   (Replaces: W11265570)		Appelez-nous	-
9	W11313206		Cover, Pcb				$ 73.67
10	W11360536		Assembly, Fan Motor				$ 194.29
11	W11109499		Drier (service Drier Without Dye) (also Order The Following Lokring™ Parts)   (Replaces: W10805035)			Immediately	$ 35.21
12	W11266075		Clamp   (Replaces: W11265569)		Appelez-nous	-
13	W11746146		Box, Ib   (Replaces: W11721645)				$ 396.97
14	W11774629		Cover, Side   (Replaces: W11723866)				$ 13.91
15	W11774696		Stopper   (Replaces: W11723875)		Appelez-nous	-
16	W11755086		Screw   (Replaces: W11721657)		Appelez-nous	-
17	W11755087		Screw   (Replaces: W11721659)		Appelez-nous	-
18	W11721449		Compressor		Appelez-nous	-
19	W11596025		Compressor, Rubber   (Replaces: W11360595)				$ 34.44
20	W11375771		Bolt		Appelez-nous	-
21	W11618463		Cord, Power			Immediately	$ 119.22
NI	ARIF916CC318E008C40755DF76F91C7B724		Refrigerant Charge 52 Grams (r600a)		Appelez-nous	-
