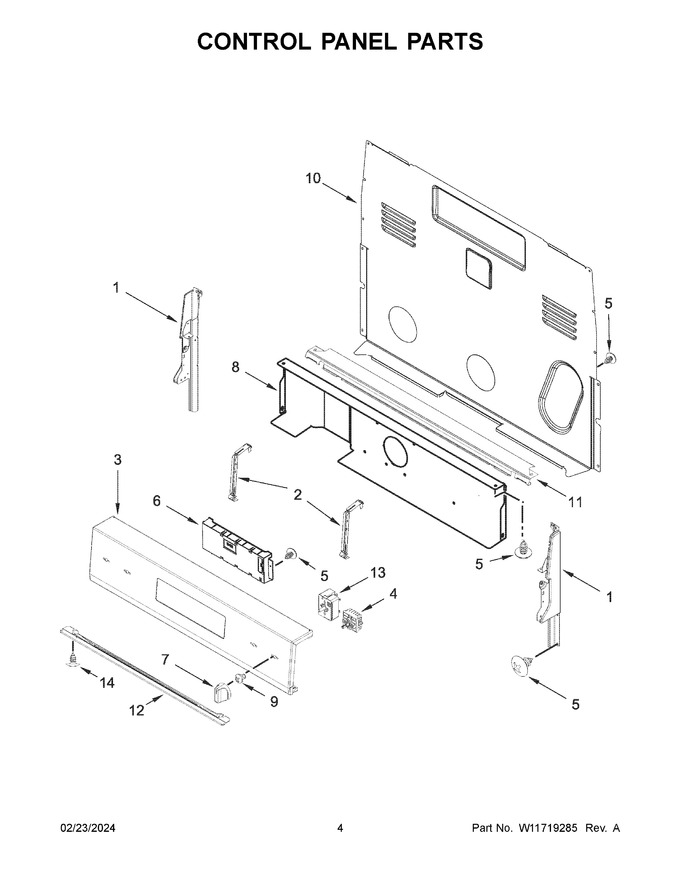

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11213290		Endcap (black (left))				$ 312.99
2	W11713812		Bracket, Control   (Replaces: W11290750)				$ 27.33
3	W11707070		Console, Assembly (black)   (Replaces: W11299264)				$ 157.08
4	W10857622		Switch, Infinite (left Front And Right Front)   (Replaces: W10437092)			Immediately	$ 215.89
5	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
6	W11696067		Control, Electronic (lcx) (black)   (Replaces: W11637088)		Appelez-nous	-
7	W11707069		Knob (black)   (Replaces: W11331196)			Immediately	$ 20.26
8	W10134247		Shield, Heat			Immediately	$ 322.94
9	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 6.80
10	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 197.14
11	W10525121		Bracket, Console Mounting				$ 88.97
12	W11443964		Bracket, Eye Brow (black)				$ 200.19
13	W10911303		Switch, Infinite (right Rear)   (Replaces: W10578768)			Immediately	$ 103.74
14	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 6.80
12A	W11443963		Bracket, Eye Brow (white)				$ 200.97
1A	W11259041		Endcap (white (left))   (Replaces: W11213291)				$ 94.23
1B	W11213292		Endcap (black (right))				$ 64.49
1C	W11259700		Endcap (white (right))   (Replaces: W11213293)				$ 94.23
3A	W11707068		Console, Assembly (white)   (Replaces: W11299265)				$ 95.18
6A	W11594187		Control, Electronic (lcx) (white)   (Replaces: W11536413)			Immediately	$ 338.00
7A	W11707067		Knob (white)   (Replaces: W11331195)				$ 20.68

    View Diagram in Separate Window       Print Part List
