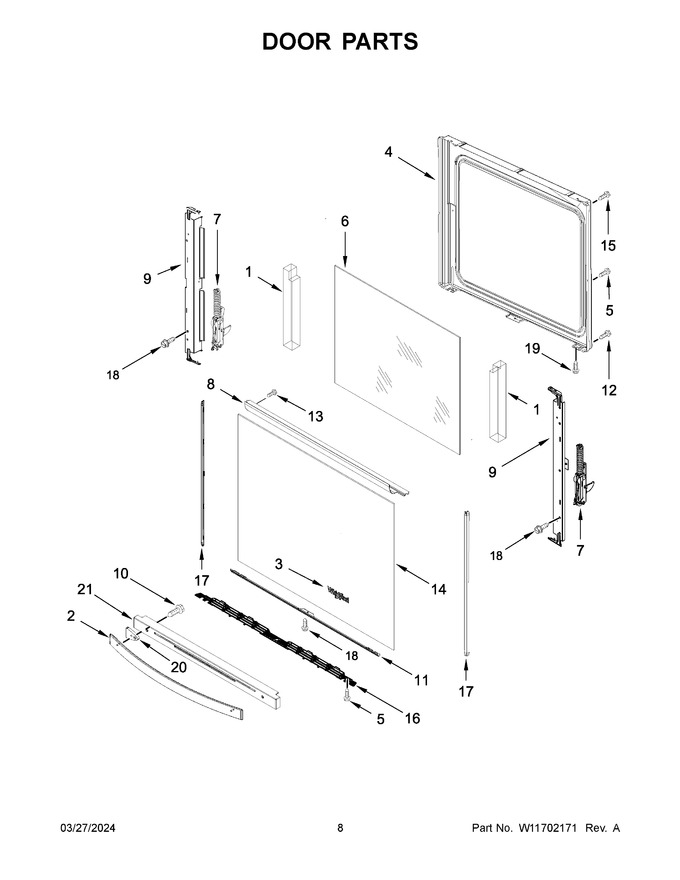

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11688565		Insulation, Door   (Replaces: W10772958)				$ 24.32
2	W11107877		Assembly, Door Handle (stainless)   (Replaces: W10918786)			Immediately	$ 238.28
3	W11178521		Badge   (Replaces: W10884775)			Immediately	$ 56.82
4	WPW10297318		Liner, Door   (Replaces: W10297318)			Immediately	$ 298.36
5	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 7.87
6	WPW10300487		Glass, Inner   (Replaces: W10300487)				$ 267.26
7	WPW10440013		Hinge, Door (active)   (Replaces: W10440013)			Immediately	$ 57.42
8	W10294853		Bracket, Glass Liner			Immediately	$ 213.34
9	W11116956		Rail, Door   (Replaces: W10294851)				$ 120.38
10	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 6.80
11	W10334031		Trim, Bottom (black)				$ 70.07
12	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.43
13	W10896982		Screw   (Replaces: W10477496)				$ 7.56
14	W11730255		Assembly, Outer Door (black)   (Replaces: W11693008)		Appelez-nous	-
15	WPW10317886		Screw   (Replaces: W10317886)			Immediately	$ 7.38
16	W11726954		Door, Bottom Cover   (Replaces: W11440160)				$ 51.06
17	W10334004		Trim, Side (black)				$ 210.38
18	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 7.92
19	W11245710		Screw   (Replaces: 9780274)			Immediately	$ 13.28
20	W10917796		Standoff, Handle (black)				$ 64.81
21	W11564642		Trim, Vent (stainless)   (Replaces: W11519842)			Immediately	$ 196.18
