01 - Cover Sheet

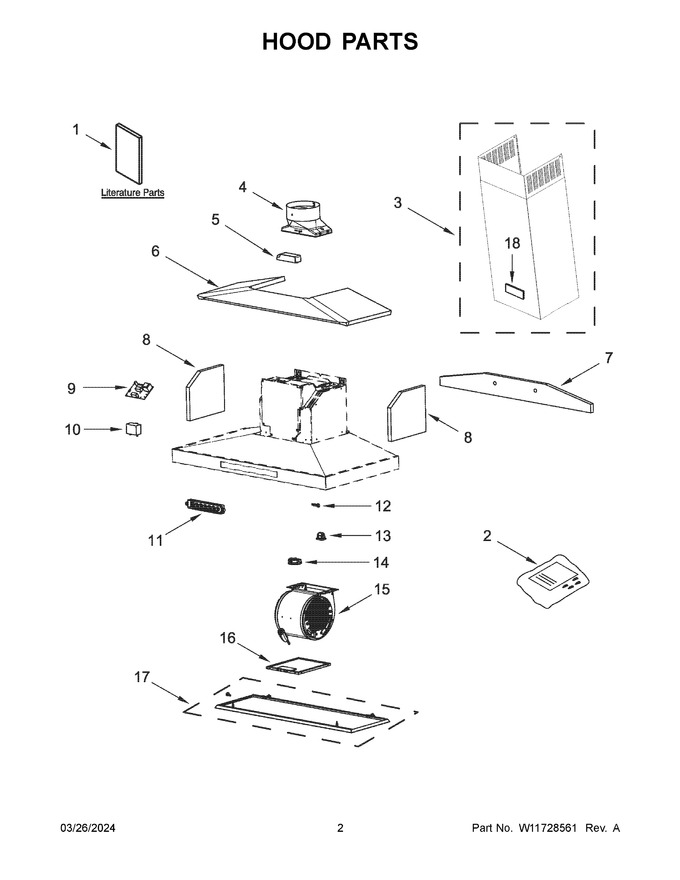

02 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10674118 | Use And Care Guide |
|
- | |||||
| 2 | W11321343 | Hardware, Installation |
|
$ 113.85 | |||||
| 3 | W11321566 | Chimney, Upper And Lower (Replaces: W11321337) |
|
$ 360.81 | |||||
| 4 | W10847841 | Damper, Hood (Replaces: W10592040) |
|
$ 140.43 | |||||
| 5 | W11282989 | Driver, Led (Replaces: W11281878) |
|
$ 237.02 | |||||
| 6 | W11688772 | Insulation (30" Model Only) (Replaces: W10716812) |
|
Immediately | $ 209.38 | ||||
| 7 | W11684907 | Insulation, Back (30" Model Only) (Replaces: W10727038) |
|
Immediately | $ 114.26 | ||||
| 8 | W11848867 | Insulation, Side (Replaces: W10717244) |
|
$ 81.32 | |||||
| 9 | W11293971 | Board, Control (Replaces: W11291913) |
|
$ 314.48 | |||||
| 10 | W11715950 | Capacitor (25 Mf) (Replaces: W11245979) |
|
Immediately | $ 91.53 | ||||
| 11 | WPW10716813 | Control, Electronic (Replaces: W10716813) |
|
Immediately | $ 288.49 | ||||
| 12 | W11737108 | Sensor, Speed (Replaces: W10716822) |
|
$ 203.18 | |||||
| 13 | W10854245 | Clip, Panel (Replaces: W10735735) |
|
Immediately | $ 68.03 | ||||
| 14 | W11794237 | Light, Led (Replaces: W11488580) |
|
Immediately | $ 76.20 | ||||
| 15 | W11106377 | Blower, Fan (Replaces: W10638161) |
|
Immediately | $ 661.19 | ||||
| 16 | W10915369 | Filter, Grease (Replaces: W10727013) |
|
Immediately | $ 39.73 | ||||
| 17 | W10735352 | Panel, Perimetric (30" Model Only) |
|
$ 199.36 | |||||
| 18 | W10909682 | Nameplate (Replaces: W10518673) |
|
Immediately | $ 68.58 | ||||
| 17A | W10735373 | Panel, Perimetric (36" Model Only) |
|
$ 207.52 | |||||
| 6A | W11688395 | Insulation (36" Model Only) (Replaces: W10727039) |
|
$ 121.30 | |||||
| 7A | W11684803 | Insulation, Back (36" Model Only) (Replaces: W10727040) |
|
$ 81.34 |
