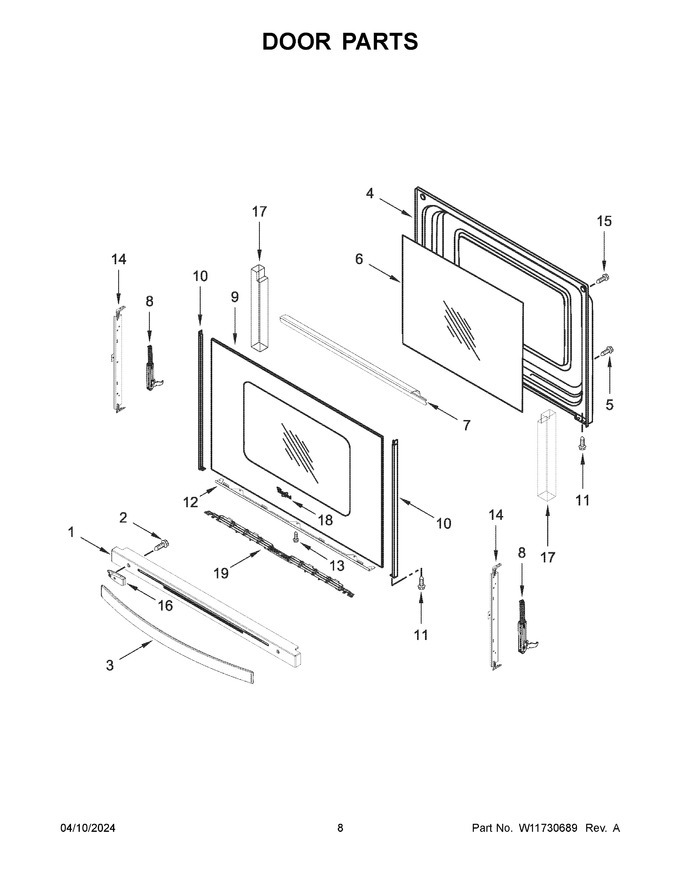

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11106938 | Trim, Top (black) (Replaces: W10880611) |
|
$ 128.03 | |||||
| 2 | W10896982 | Screw (Replaces: W10477496) |
|
$ 7.56 | |||||
| 3 | W11107394 | Handle, Door (black) (Replaces: W11022643) |
|
$ 206.51 | |||||
| 4 | WPW10297318 | Liner, Door (Replaces: W10297318) |
|
Immediately | $ 298.36 | ||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 6 | WPW10300487 | Glass, Inner (Replaces: W10300487) |
|
$ 267.26 | |||||
| 7 | W10294853 | Bracket, Glass Liner |
|
Immediately | $ 213.34 | ||||
| 8 | WPW10440013 | Hinge, Door (active) (Replaces: W10440013) |
|
Immediately | $ 57.42 | ||||
| 9 | W11705268 | Glass Assembly, Outer Door (black) (Replaces: W11687919) |
|
Immediately | $ 145.04 | ||||
| 10 | W10334004 | Trim, Side (black) |
|
$ 210.38 | |||||
| 11 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 7.92 | ||||
| 12 | W10334031 | Trim, Bottom (black) |
|
$ 70.07 | |||||
| 13 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 14 | W11116956 | Rail, Door (Replaces: W10294851) |
|
$ 120.38 | |||||
| 15 | WPW10317886 | Screw (Replaces: W10317886) |
|
Immediately | $ 7.38 | ||||
| 16 | W10917796 | Standoff, Handle (black) |
|
$ 64.81 | |||||
| 17 | W11688565 | Insulation, Door (Replaces: W10772958) |
|
$ 24.32 | |||||
| 18 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 56.82 | ||||
| 19 | W11726954 | Door, Bottom Cover (Replaces: W11440160) |
|
$ 51.06 |
