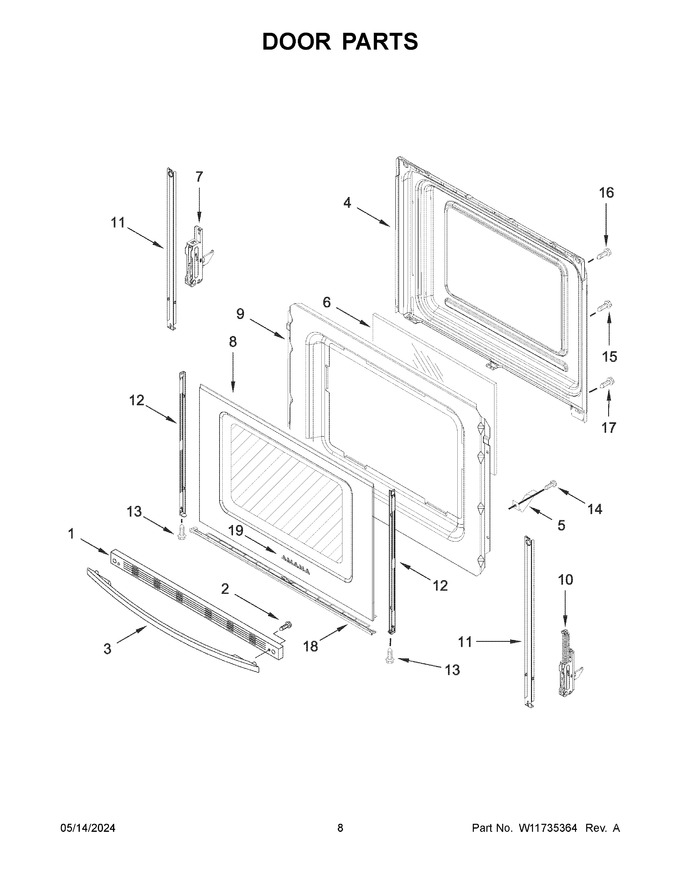

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10817433 | Trim, Top (white) (Replaces: W10310920) |
|
Immediately | $ 180.30 | ||||
| 2 | W10817436 | Screw (Replaces: W10168559) |
|
Immediately | $ 8.14 | ||||
| 3 | W10817434 | Handle, Door (white) (Replaces: W10323588) |
|
Immediately | $ 234.82 | ||||
| 4 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 372.89 | ||||
| 5 | W10137382 | Clip, Panel |
|
Immediately | $ 48.42 | ||||
| 6 | W11399628 | Glass, Inner (Replaces: W11367326) |
|
$ 171.68 | |||||
| 7 | WPW10299227 | Hinge, Door (passive) (Replaces: W10299227) |
|
Immediately | $ 70.74 | ||||
| 8 | W10904906 | Glass Assembly, Outer Door (white) (Replaces: W10851723) |
|
$ 282.69 | |||||
| 9 | W11685635 | Retainer, Insulation (Replaces: W11380221) |
|
$ 188.29 | |||||
| 10 | WPW10299225 | Hinge, Active (Replaces: W10299225) |
|
Immediately | $ 100.57 | ||||
| 11 | W11502236 | Strap, Door (Replaces: W11379944) |
|
Immediately | $ 27.68 | ||||
| 12 | WP8523172 | Trim, Side (white (left)) (Replaces: 8523172) |
|
Immediately | $ 69.93 | ||||
| 13 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 8.80 | ||||
| 14 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 15 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 16 | WPW10200660 | Screw (Replaces: W10200660) |
|
Immediately | $ 8.24 | ||||
| 17 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 18 | W11594186 | Trim, Lower (white) (Replaces: W11444042) |
|
Immediately | $ 61.37 | ||||
| 19 | W10849465 | Badge (white) |
|
Immediately | $ 82.81 | ||||
| 12A | WP8523166 | Trim, Side (white (right)) (Replaces: 8523166) |
|
Immediately | $ 84.23 |
