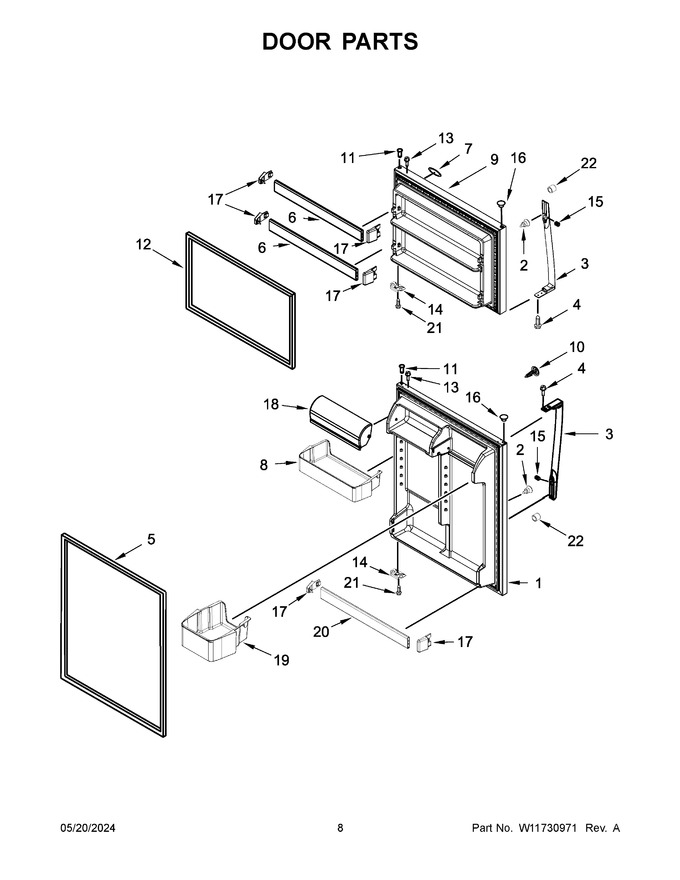

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10646224 | Refrigerator Door (includes Door Gasket) (white) (Replaces: W10646224) |
|
$ 763.23 | |||||
| 2 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 6.80 | ||||
| 3 | W10837577 | Handle, Door (includes Illus. 15) (white) (Replaces: W10580723) |
|
Immediately | $ 95.62 | ||||
| 4 | WPW10170540 | Screw (Replaces: W10170540) |
|
Immediately | $ 8.69 | ||||
| 5 | W10860480 | Gasket, Door (white) (Replaces: W11406596) |
|
$ 278.77 | |||||
| 6 | W10592150 | Trim, Door |
|
$ 113.36 | |||||
| 7 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 56.82 | ||||
| 8 | WPW10308868 | Bin, Large Door (Replaces: W10308868) |
|
Immediately | $ 80.18 | ||||
| 9 | LW10646225 | Freezer Door (includes Door Gasket) (white) (Replaces: W10646225) |
|
$ 758.25 | |||||
| 10 | W10830984 | Plug, Hole (white) (Replaces: W10663736) |
|
$ 7.54 | |||||
| 11 | W11189115 | Thimble, Top (black) (Replaces: W10334042) |
|
$ 11.44 | |||||
| 12 | W10741118 | Gasket, Door (white) (Replaces: W11406593) |
|
$ 298.83 | |||||
| 13 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 7.53 | |||||
| 14 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 15 | 690046 | Screw, Set |
|
- | |||||
| 16 | WP2212648 | Plug, Hinge Sleeve (white) (Replaces: 2212648) |
|
Immediately | $ 7.37 | ||||
| 17 | W10838039 | Cap, Trim End (Replaces: W10592153) |
|
Immediately | $ 50.11 | ||||
| 18 | W11675283 | Compartment, Door (Replaces: W10601425) |
|
$ 30.91 | |||||
| 19 | WPW10308869 | Bin, Medium (Replaces: W10308869) |
|
Immediately | $ 69.93 | ||||
| 20 | W11126062 | Trim, Door (Replaces: W10592148) |
|
$ 114.61 | |||||
| 21 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.43 | ||||
| 22 | WPW10511911 | Bushing, Handle (Replaces: W10511911) |
|
$ 14.50 | |||||
| 10A | W10830983 | Plug, Hole (black) (Replaces: W10663737) |
|
$ 17.59 | |||||
| 10B | W10830982 | Plug, Hole (grey) (Replaces: W10663739) |
|
Immediately | $ 17.59 | ||||
| 12A | 2177310 | Gasket, Door (black) (Replaces: W11406601) |
|
$ 301.78 | |||||
| 12B | W10249196 | Gasket, Door (grey) (Replaces: W11406598) |
|
Immediately | $ 251.19 | ||||
| 16A | WP2212651 | Plug, Hinge Sleeve (black) (Replaces: 2212651) |
|
$ 21.79 | |||||
| 16B | WP2254517 | Plug, Hinge Sleeve (grey) (Replaces: 2254517) |
|
Immediately | $ 21.91 | ||||
| 1A | LW10648575 | Refrigerator Door (includes Door Gasket) (black) (Replaces: W10648575) |
|
$ 655.50 | |||||
| 1B | LW10648584 | Refrigerator Door (includes Door Gasket) (stainless) (Replaces: W10648584) |
|
$ 863.73 | |||||
| 3A | W10839425 | Handle, Door (includes Illus. 15) (black) (Replaces: W10656973) |
|
$ 153.05 | |||||
| 3B | W10837029 | Handle, Door (includes Illus. 15) (stainless) (Replaces: W10653471) |
|
Immediately | $ 191.93 | ||||
| 5A | 2177311 | Gasket, Door (black) (Replaces: W11406604) |
|
$ 297.86 | |||||
| 5B | W10249195 | Gasket, Door (grey) (Replaces: W11406600) |
|
$ 302.22 | |||||
| 9A | LW10648577 | Freezer Door (includes Door Gasket) (black) (Replaces: W10648577) |
|
$ 758.48 | |||||
| 9B | LW10648583 | Freezer Door (includes Door Gasket) (stainless) (Replaces: W10648583) |
|
$ 845.09 |
