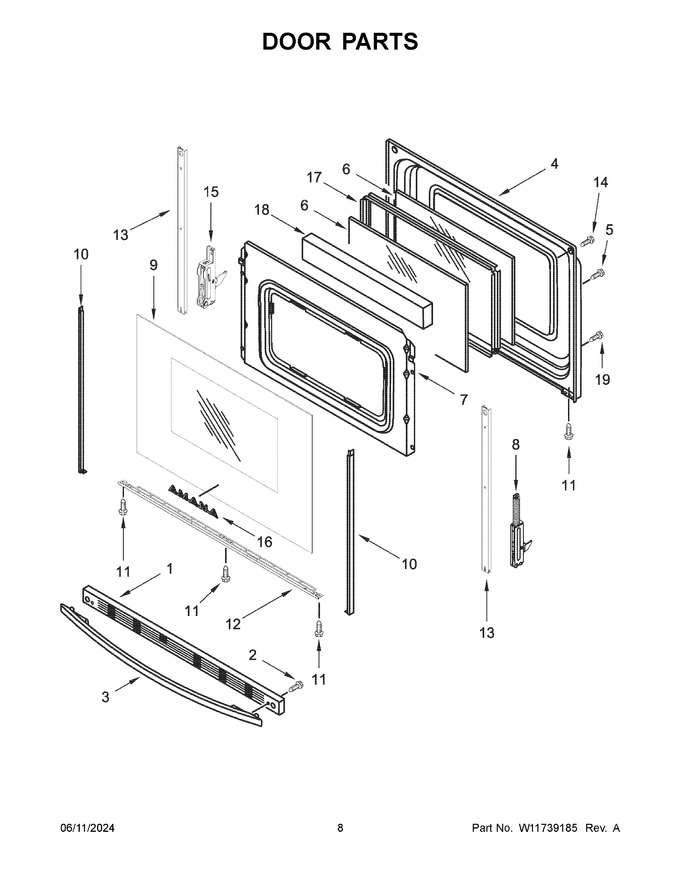

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10817433		Trim, Top (white)   (Replaces: W10310920)			Immediately	$ 162.27
2	W10817436		Screw   (Replaces: W10168559)			Immediately	$ 7.33
3	W10817434		Handle, Door (white)   (Replaces: W10323588)			Immediately	$ 211.34
4	WP9761344		Liner, Door   (Replaces: 9761344)			Immediately	$ 335.60
5	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 7.87
6	WP8053948		Glass, Inner   (Replaces: 9758162)				$ 208.85
7	W11539580		Retainer, Insulation   (Replaces: W11380222)				$ 209.98
8	WPW10299226		Hinge, Active   (Replaces: W10299226)			Immediately	$ 83.84
9	W10904906		Glass, Outer (white)   (Replaces: W10851723)				$ 254.42
10	WP8523172		Trim, Side (white (left))   (Replaces: 8523172)			Immediately	$ 62.94
11	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 7.92
12	W11594186		Trim, Lower (white)   (Replaces: W11444042)			Immediately	$ 55.23
13	W11502236		Strap, Door   (Replaces: W11379944)			Immediately	$ 24.91
14	WPW10200660		Screw   (Replaces: W10200660)			Immediately	$ 7.42
15	WPW10299227		Hinge, Door (passive)   (Replaces: W10299227)			Immediately	$ 63.67
16	W10849465		Badge (white)			Immediately	$ 74.53
17	WPW10316950		Frame, Glass   (Replaces: W10316950)			Immediately	$ 81.08
18	WPW10278991		Insulation, Door Strip   (Replaces: W10278991)			Immediately	$ 91.23
19	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.43
10A	WP8523166		Trim, Side (white (right))   (Replaces: 8523166)			Immediately	$ 75.81
