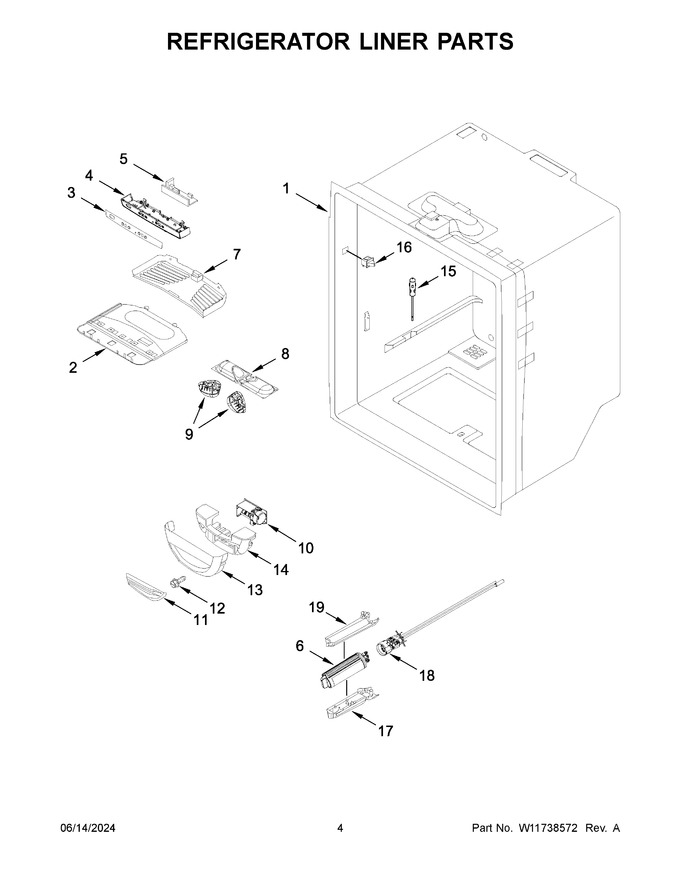

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI8B23AD81B97D70C7853D17BAA6EEAA2D | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W10464764 | Module, Light |
|
$ 107.02 | |||||
| 3 | W11712701 | Overlay (Replaces: W10746278) |
|
$ 187.62 | |||||
| 4 | W11416469 | Module, Control (Replaces: W10464767) |
|
Immediately | $ 211.36 | ||||
| 5 | W11642241 | Board, Control (Replaces: W11593757) |
|
Immediately | $ 294.70 | ||||
| 6 | EDRARXD1B | Filter, Water (Replaces: W11536439) |
|
Immediately | $ 49.99 | ||||
| 7 | W11284721 | Cover, Light (Replaces: W11132917) |
|
$ 95.42 | |||||
| 8 | W10443023 | Housing, Light |
|
Immediately | $ 105.97 | ||||
| 9 | W11602886 | Light Module, Led (Replaces: W11468934) |
|
$ 38.37 | |||||
| 10 | WPW10594329 | Control, Damper (Replaces: W10594329) |
|
Immediately | $ 160.75 | ||||
| 11 | 67003900 | Insert, Damper Cover (Replaces: 12806801) |
|
$ 7.70 | |||||
| 12 | W11772394 | Screw (Replaces: 12990604) |
|
Immediately | $ 11.90 | ||||
| 13 | WP12806701 | Cover, Damper (Replaces: 12806701) |
|
$ 106.79 | |||||
| 14 | W11750607 | Insulation, Damper (Replaces: W11657832) |
|
$ 45.14 | |||||
| 15 | W11690896 | Thermistor (Replaces: 12791416) |
|
Immediately | $ 32.59 | ||||
| 16 | W11384469 | Switch, Rocker (Replaces: W10847853) |
|
Immediately | $ 35.18 | ||||
| 17 | W11706224 | Plate, Filter (Replaces: W11510657) |
|
$ 21.74 | |||||
| 18 | W11838110 | Manifold, Water System (Replaces: W11519957) |
|
Immediately | $ 125.23 | ||||
| 19 | W11706225 | Cover, Filter (Replaces: W11510654) |
|
$ 89.32 | |||||
| NI | ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | |||||
| NI | W11642013 | Harness, Fresh Food Control (includes Thermistor) (Replaces: W11609495) |
|
Immediately | $ 69.35 |
