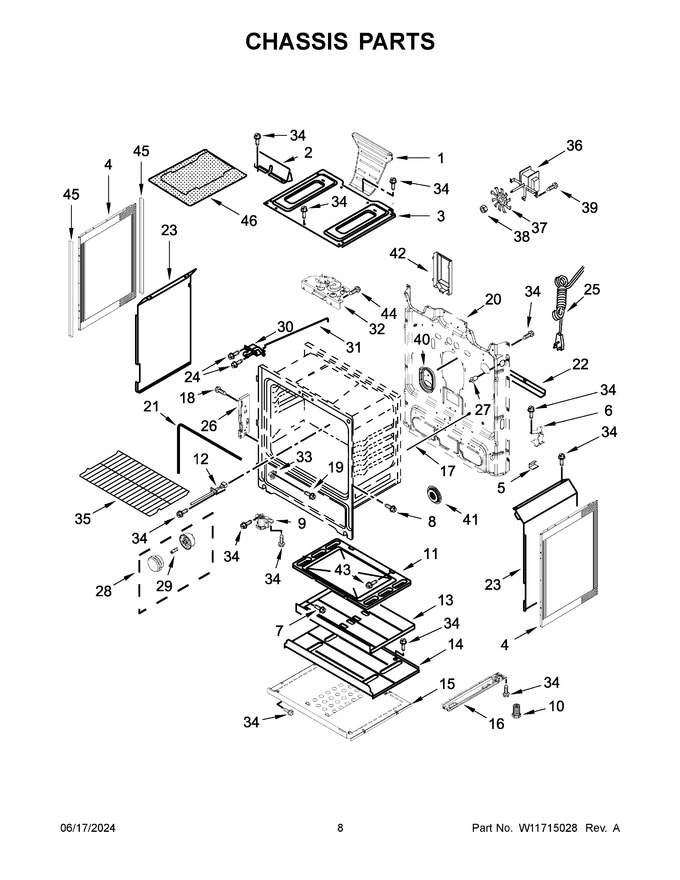

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11457094		Box, Flue				$ 142.02
2	WP8272747		Shield, Flue   (Replaces: 8272747)				$ 67.06
3	W11379351		Box-burner, Gas Sealed				$ 57.77
4	W11730303		Panel, Side (black)   (Replaces: W10162245)			Immediately	$ 160.65
5	W10137382		Clip, Panel			Immediately	$ 43.58
6	8523249		Bracket, Manifold		Appelez-nous	-
7	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 13.25
8	W11169708		Screw   (Replaces: 3196560)				$ 13.36
9	WPW10341186		Front Foot Assembly   (Replaces: W10341186)			Immediately	$ 29.33
10	WPW10058460		Foot, Leveling   (Replaces: W10058460)			Immediately	$ 7.42
11	W11730226		Bottom, Oven   (Replaces: 3195097)				$ 207.95
12	W10833885		Sensor   (Replaces: W10586204)			Immediately	$ 143.70
13	8053967		Baffle, Burner Oven				$ 284.36
14	8053969		Shield, Heat				$ 101.74
15	W11730232		Shield, Lower   (Replaces: W11640074)		Appelez-nous	-
16	W11818353		Base Rail Assembly (left)   (Replaces: W10390008)				$ 56.39
17	9757239		Rod, Door Switch				$ 86.73
18	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.43
19	W11684512		Screw   (Replaces: 3400080)				$ 13.33
20	ARI53A59E4DF569FFBA0D55DAB22B38581F		Back, Main (not Serviced)		Appelez-nous	-
21	W11542153		Seal, Door   (Replaces: W11491751)			Immediately	$ 45.18
22	W10435470		Brace, Main Back				$ 73.57
23	W11379353		Retainer, Insulation (left)		Appelez-nous	-
24	W11169708		Screw   (Replaces: 3196560)				$ 13.36
25	W11582239		Cord, Power   (Replaces: W10910642)				$ 15.83
26	W10647259		Receiver, Hinge   (Replaces: W10289077)			Immediately	$ 8.39
27	W11620712		Switch, Door   (Replaces: W11511828)			Immediately	$ 41.68
28	W11707255		Light Assembly   (Replaces: W11634772)			Immediately	$ 36.68
29	WPW10571723		Bulb, Halogen 40 Watts   (Replaces: W10571723)			Immediately	$ 24.94
30	WP9761013		Front Door Latch Assembly   (Replaces: 9761013)				$ 230.72
31	W10078370		Rod, Push Latch				$ 85.72
32	WPW10107820		Rear Door Latch Assembly   (Replaces: W10107820)				$ 278.60
33	W10807823		Glide, Drawer Front   (Replaces: W10674705)			Immediately	$ 17.37
34	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
35	W11520287		Rack, Oven   (Replaces: W11173792)			Immediately	$ 52.19
36	W11548751		Fan Motor, Convection   (Replaces: W11403615)				$ 148.30
37	W11548753		Blade, Fan   (Replaces: W11425715)			Immediately	$ 141.87
38	W11548755		Nut, Acorn (lh)   (Replaces: W11433702)				$ 13.84
39	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.80
40	W10134126		Bracket, Fan				$ 21.58
41	WPW10134124		Cover, Conv Fan   (Replaces: W10134124)			Immediately	$ 92.33
42	W10158780		Cover, Rear Fan				$ 106.63
43	W10379120		Screw		Appelez-nous	-
44	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
45	W11175143		Gasket   (Replaces: W10919715)			Immediately	$ 22.16
46	W11692811		Basket, Airfry   (Replaces: W11661815)			Immediately	$ 105.92
16A	W11818353		Base Rail Assembly (right)   (Replaces: W10390007)				$ 56.39
23A	W11379943		Retainer, Insulation (right)		Appelez-nous	-
4A	WPW10575396		Panel, Side (white)   (Replaces: W10575396)				$ 182.19
NI	W11684915		Insulation, Wrap   (Replaces: 8524099)				$ 111.28
NI	W11688737		Insulation, Back   (Replaces: W10180437)				$ 110.46
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
