01 - Cover Sheet


02 - Cooktop Parts


03 - Chassis Parts


04 - Manifold Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)

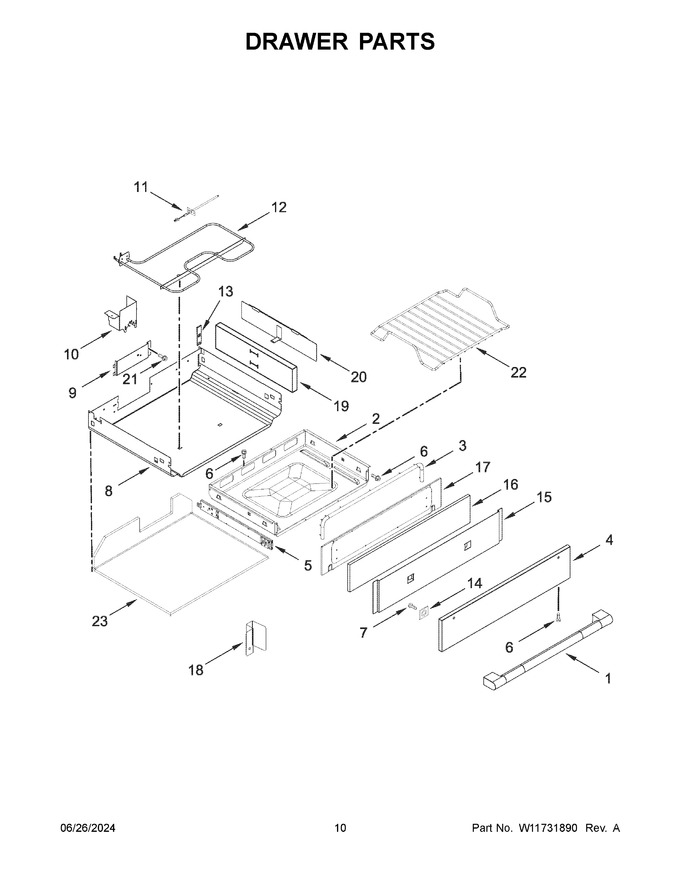

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11647008		Assembly, Door Handle (stainless)   (Replaces: W11600908)			Immediately	$ 352.89
2	W11036176		Drawer,bake   (Replaces: W10757442)				$ 196.79
3	W10550987		Seal, Drawer				$ 153.32
4	W10541958		Panel, Drawer Front (stainless)				$ 178.28
5	W11670722		Slide, Drawer (left)   (Replaces: W11399928)			Immediately	$ 170.45
6	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 7.92
7	WP8533988		Screw   (Replaces: 8533988)			Immediately	$ 7.90
8	W10634260		Enclosure, Warming			Immediately	$ 188.12
9	W10727084		Cover, Gas Valve				$ 78.82
10	W10634259		Cover, Wire				$ 79.06
11	W10833885		Sensor   (Replaces: W10586204)			Immediately	$ 143.70
12	W10541944		Element, Bake			Immediately	$ 148.37
13	W10551019		Cover, Side				$ 80.17
14	3823F01745		Spacer, Handle		Appelez-nous	-
15	W10551018		Insulation, Drawer Front				$ 101.55
16	W11688515		Insulation, Drawer   (Replaces: W10550982)				$ 107.58
17	W10541947		Panel, Front Inner				$ 154.47
18	W10655446		Shield, Corner				$ 29.21
19	W10550984		Insulation, Drawer Side		Appelez-nous	-
20	W10550985		Retainer, Side Insulation		Appelez-nous	-
21	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
22	W10602493		Rack, Bake Drawer				$ 557.15
23	W11688775		Insulation, Bake Drawer Bottom   (Replaces: W10551011)		Appelez-nous	-
5A	W11670723		Slide, Drawer (right)   (Replaces: W11399929)			Immediately	$ 170.45
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	W10550983		Insulation, Retainer Bake Drawer		Appelez-nous	-
NI	W11688782		Insulation, Drawer Top   (Replaces: W10541960)		Appelez-nous	-
