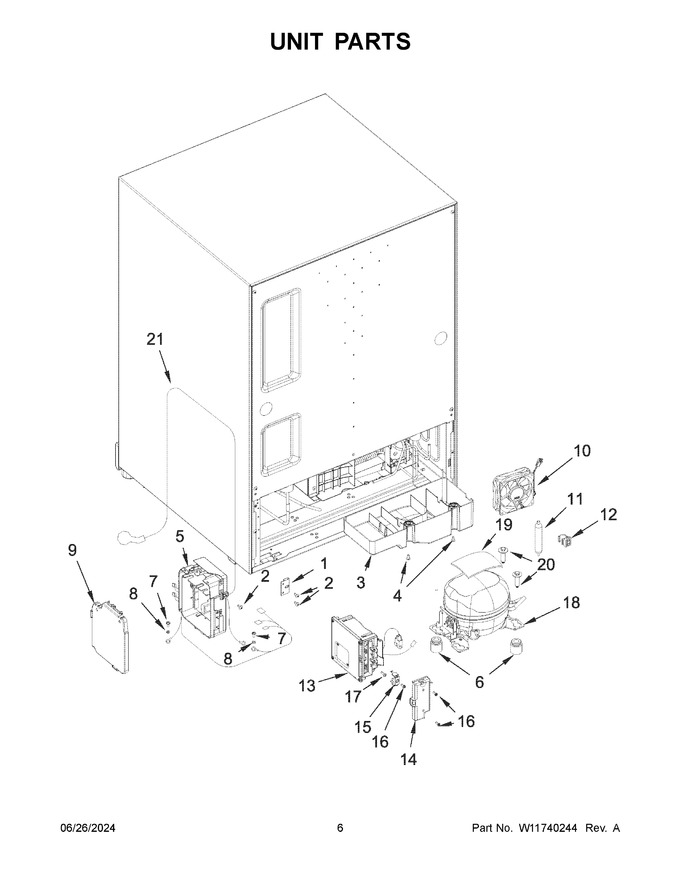

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11579515 | Clamp, Cord (Replaces: W11576947) |
|
- | |||||
| 2 | W11371097 | Screw |
|
- | |||||
| 3 | W11360241 | Water Pan, Evaporator |
|
- | |||||
| 4 | W11375763 | Screw |
|
- | |||||
| 5 | W11746147 | Assembly, Pcb Box (includes Power Cord) (Replaces: W11740247) |
|
- | |||||
| 6 | W11360596 | Mount, Compressor |
|
- | |||||
| 7 | 4344826 | Screw |
|
$ 15.03 | |||||
| 8 | W11266077 | Washer (Replaces: W11265570) |
|
- | |||||
| 9 | W11313206 | Cover, Pcb |
|
$ 73.67 | |||||
| 10 | W11360536 | Assembly, Fan Motor |
|
$ 194.29 | |||||
| 11 | W11109499 | Drier (service Drier Without Dye) (also Order The Following Lokring Parts) (Replaces: W10805035) |
|
Immediately | $ 35.21 | ||||
| 12 | W11266075 | Clamp (Replaces: W11265569) |
|
- | |||||
| 13 | W11746146 | Box, Ib (Replaces: W11721645) |
|
$ 396.97 | |||||
| 14 | W11360590 | Cover, Side |
|
- | |||||
| 15 | W11360592 | Stopper |
|
- | |||||
| 16 | W11375768 | Screw |
|
- | |||||
| 17 | W11375770 | Screw |
|
- | |||||
| 18 | W11721449 | Compressor |
|
- | |||||
| 19 | W11596025 | Compressor, Rubber (Replaces: W11360595) |
|
$ 34.44 | |||||
| 20 | W11375771 | Bolt |
|
- | |||||
| 21 | W11618463 | Cord, Power |
|
Immediately | $ 119.22 | ||||
| NI | ARIF916CC318E008C40755DF76F91C7B724 | Refrigerant Charge 52 Grams (r600a) |
|
- |
