01 - Cover Sheet


02 - Cabinet Parts


03 - Liner Parts


04 - Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Optional Parts

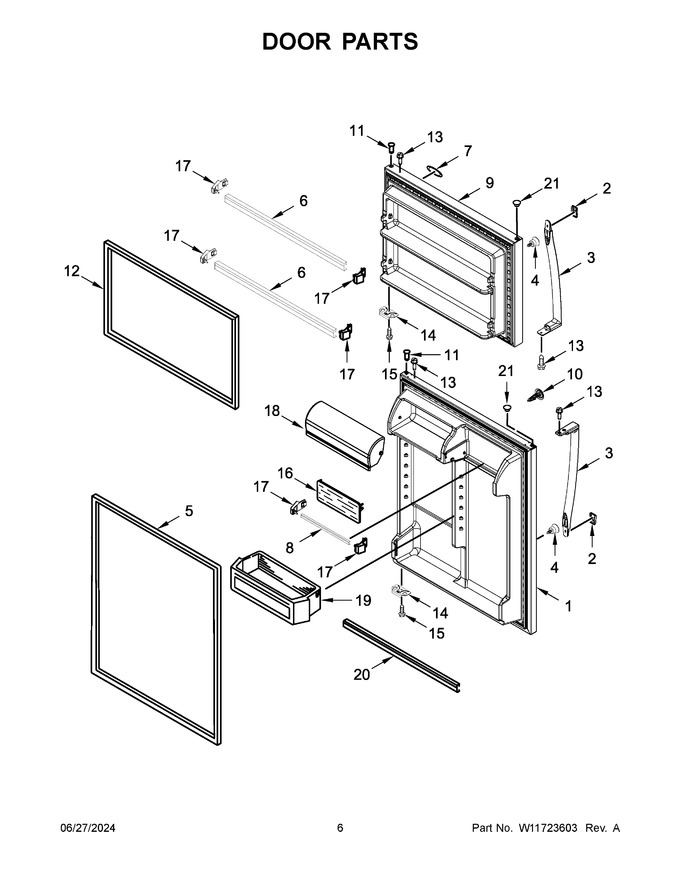

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW10916047		Refrigerator Door (includes Door Gasket) (stainless)   (Replaces: W10916047)		Appelez-nous	-
2	W11519504		Handle, Trim (gray)   (Replaces: W11374428)			Immediately	$ 45.39
3	W10806512		Handle, Door (stainless)   (Replaces: W10653470)			Immediately	$ 224.02
4	WP489357		Screw   (Replaces: 489357)			Immediately	$ 6.80
5	W10249195		Gasket, Door (grey)   (Replaces: W11406600)				$ 302.22
6	W11596065		Trim, Door   (Replaces: W11230196)				$ 88.43
7	W11178521		Badge   (Replaces: W10884775)			Immediately	$ 56.82
8	W11678258		Trim, Door   (Replaces: W10720455)				$ 79.33
9	LW10916048		Freezer Door (includes Door Gasket) (stainless)   (Replaces: W10916048)		Appelez-nous	-
10	W10830982		Plug, Hole (grey)   (Replaces: W10663739)			Immediately	$ 17.59
11	WP2314293		Thimble   (Replaces: 2314293)				$ 6.80
12	W10249196		Gasket, Door (grey)   (Replaces: W11406598)			Immediately	$ 251.19
13	WP8281206		Screw   (Replaces: 8281206)				$ 7.53
14	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
15	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.43
16	WP2188236		Door, Flip Up   (Replaces: 2188236)				$ 57.94
17	WP2156003		Endcap, Trim   (Replaces: 2156003)			Immediately	$ 11.93
18	W11617783		Door, Compartment   (Replaces: W11455931)				$ 68.65
19	W10803530		Bin, Door   (Replaces: W10582649)				$ 68.29
20	W11606660		Trim, Door   (Replaces: W11230195)			Immediately	$ 29.35
21	WP2254517		Plug, Hinge (grey)   (Replaces: 2254517)			Immediately	$ 21.91
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	W10676240		Door Reversal Kit Stainless Model				$ 101.29

    View Diagram in Separate Window       Print Part List
