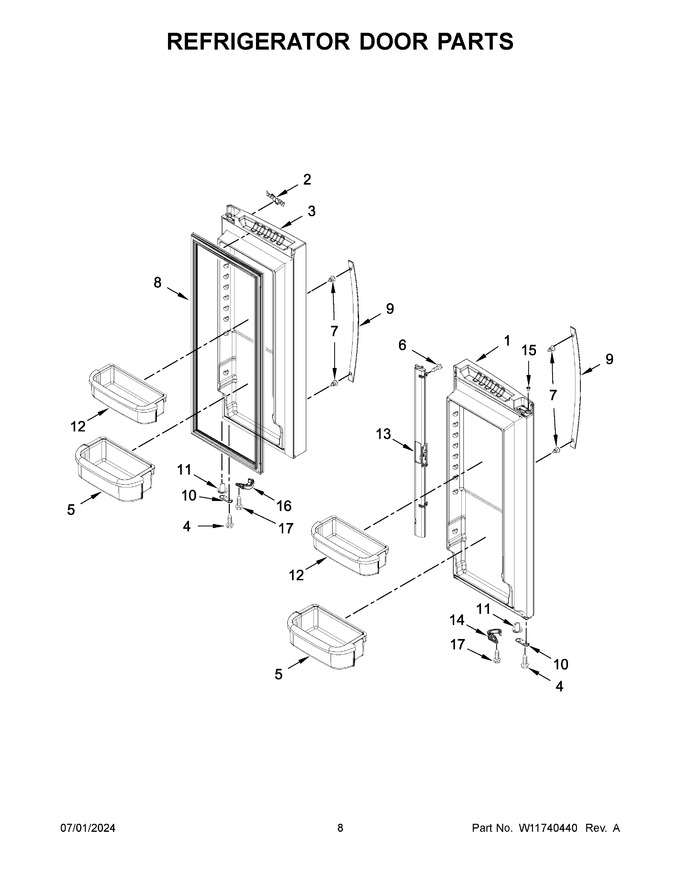

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11661561 | Door, Left (white) (Replaces: W11622646) |
|
$ 964.02 | |||||
| 2 | W11223753 | Badge (Replaces: W10884773) |
|
Immediately | $ 78.53 | ||||
| 3 | 13107887WQ | Door, Right (white) (Replaces: 13107887W) |
|
$ 904.28 | |||||
| 4 | WP98165 | Screw (Replaces: 12990504) |
|
$ 7.71 | |||||
| 5 | WPW10371194 | Bucket, Medium (Replaces: W10371194) |
|
Immediately | $ 69.51 | ||||
| 6 | W11311945 | Screw (Replaces: 12990204) |
|
$ 13.25 | |||||
| 7 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 15.35 | ||||
| 8 | W10830189 | Gasket, Door (white) |
|
$ 255.07 | |||||
| 9 | W11127179 | Handle, Door (white) (Replaces: W11101973) |
|
Immediately | $ 171.40 | ||||
| 10 | 12968202W | Stop, Door (white) |
|
$ 62.36 | |||||
| 11 | WP67003638 | Closure, Door (white) (Replaces: 12028505W) |
|
Immediately | $ 7.34 | ||||
| 12 | WPW10289497 | Bucket, Gallon (Replaces: W10289497) |
|
Immediately | $ 72.98 | ||||
| 13 | WP12722803W | Mullion, Door (white) (Replaces: 12722803W) |
|
Immediately | $ 290.84 | ||||
| 14 | W10918118 | Latch, Door Closer Left Hand (white) (Replaces: W10833740) |
|
$ 15.31 | |||||
| 15 | 12996601 | Clip, Bushing |
|
$ 10.05 | |||||
| 16 | W10918120 | Latch, Door Closer Right Hand (white) (Replaces: W10833738) |
|
Immediately | $ 15.31 | ||||
| 17 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 7.90 |
