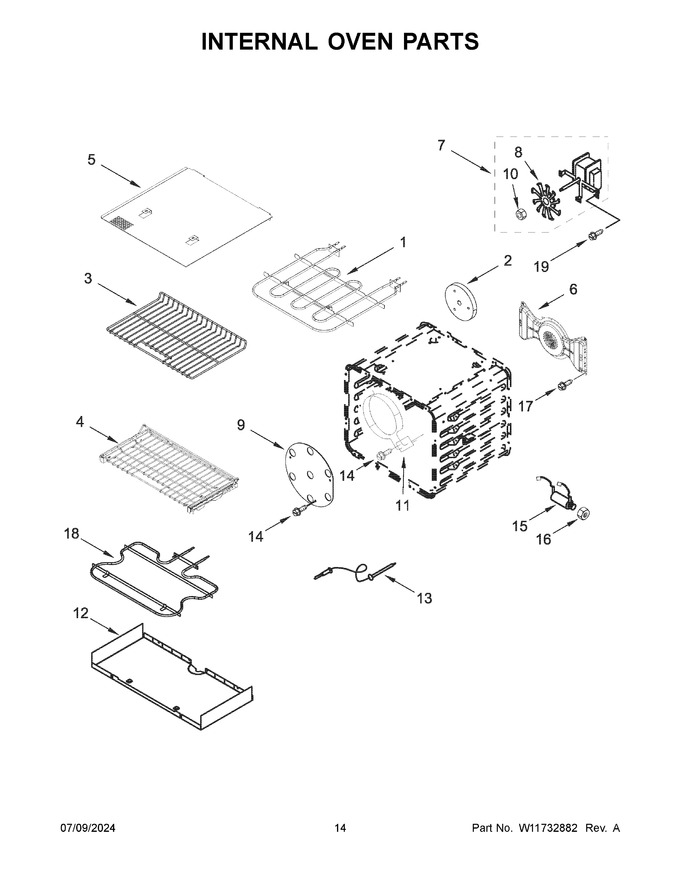

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10115994 | Element, Broil |
|
$ 269.75 | |||||
| 2 | W11688507 | Insulation, Convection Cover (Replaces: W10282821) |
|
Immediately | $ 24.39 | ||||
| 3 | W10822069 | Rack, Oven |
|
Immediately | $ 124.73 | ||||
| 4 | W11794357 | Rack, Sliding Oven (Replaces: W11496903) |
|
$ 481.41 | |||||
| 5 | W10160856 | Shield, Element Broil |
|
- | |||||
| 6 | W11662207 | Baffle, Convection (Replaces: W11212180) |
|
$ 155.91 | |||||
| 7 | W10860984 | Fan, Convection (Replaces: W10722667) |
|
Immediately | $ 191.93 | ||||
| 8 | W10819914 | Blade, Fan (Replaces: W10631503) |
|
Immediately | $ 79.80 | ||||
| 9 | W10261523 | Plate, Fan |
|
$ 70.07 | |||||
| 10 | W10794042 | Nut, Acorn (lh) (Replaces: W10631504) |
|
$ 11.83 | |||||
| 11 | W11643125 | Element, Convection Steam (Replaces: 9762242) |
|
Immediately | $ 114.16 | ||||
| 12 | W11106922 | Tray, Hidden Bake |
|
$ 154.90 | |||||
| 13 | WP9755542 | Probe, Temperature (Replaces: 9755542) |
|
Immediately | $ 89.76 | ||||
| 14 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 7.34 | |||||
| 15 | 8186589 | Jack, Meat Probe (Replaces: 9755543) |
|
$ 143.37 | |||||
| 16 | WP9755546 | Nut, Hidden (Replaces: 9755546) |
|
$ 6.57 | |||||
| 17 | W10739592 | Screw |
|
- | |||||
| 18 | W10860270 | Element, Hidden Bake (Replaces: W10115992) |
|
Immediately | $ 182.03 | ||||
| 19 | W10850807 | Screw (Replaces: W10720084) |
|
$ 6.99 |
