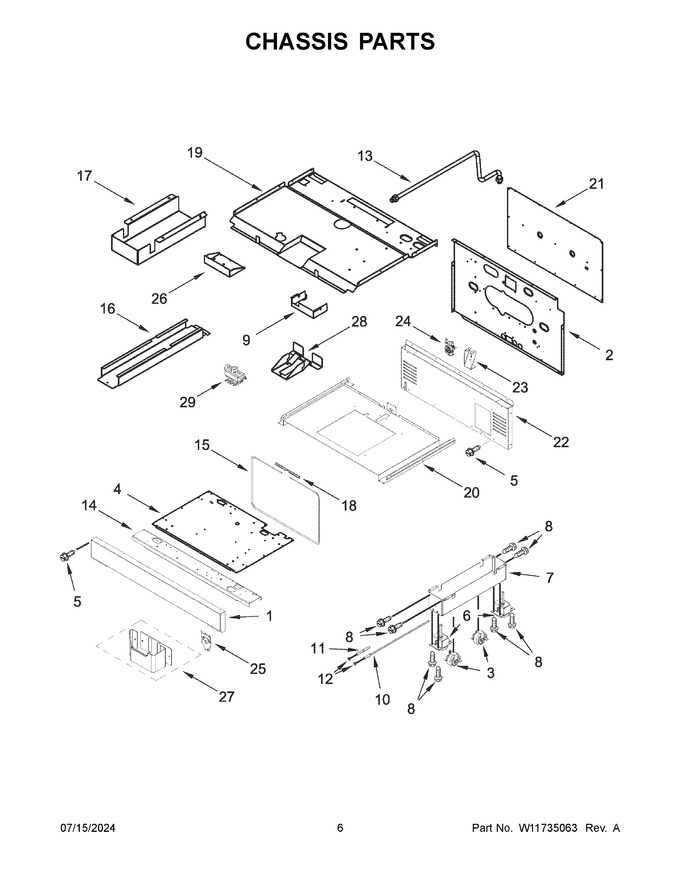

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11735205		Kickplate   (Replaces: W11697042)		Appelez-nous	-
2	W11324988		Back, Chassis		Appelez-nous	-
3	WPW10138054		Assembly, Roller   (Replaces: W10138054)				$ 40.81
4	W11095572		Duct, Bottom (36 In)		Appelez-nous	-
5	7101P42660		Screw		Appelez-nous	-
6	W10859931		Leveler   (Replaces: 9760860)				$ 107.20
7	W10908710		Base, Leveling Leg				$ 130.73
8	WP4449743		Screw   (Replaces: 4449743)				$ 6.80
9	W11369237		Cabinet, Appliance Manager				$ 80.44
10	W10115869		Shaft, Long			Immediately	$ 98.42
11	W10115793		Shaft, Short				$ 68.25
12	489504		E-ring				$ 6.66
13	W11364214		Tube, Pressure Regulator   (Replaces: W11181648)				$ 101.81
14	W11087493		Support, Channel				$ 83.70
15	W11676901		Gasket, Oven (36 In)   (Replaces: W11115330)				$ 68.17
16	W11050145		Duct-chassis, Rear		Appelez-nous	-
17	W11368831		Channel, Wire		Appelez-nous	-
18	W11362015		Retainer, Gasket (9 In Long)				$ 142.36
19	W11324985		Top, Chassis		Appelez-nous	-
20	W11040801		Chassis, Bottom				$ 201.32
21	W11103333		Panel, Back Top		Appelez-nous	-
22	W11034133		Panel, Back Bottom				$ 65.16
23	W11320155		Bracket, Pressure Regulator   (Replaces: W11096823)		Appelez-nous	-
24	W11193822		Regulator, Pressure   (Replaces: W10896959)			Immediately	$ 267.81
25	W11318207		Spring Clip, Range   (Replaces: W11036559)				$ 11.59
26	W11320147		Drawer, Appliance Manager   (Replaces: W11106341)		Appelez-nous	-
27	W11199181		Cover, Foot (left)			Immediately	$ 82.76
28	W11190223		Bracket, Bake Alignment				$ 74.52
29	W11239228		Valve, Dual   (Replaces: W10145680)			Immediately	$ 303.26
27A	W11199178		Cover, Foot (right)				$ 81.86
