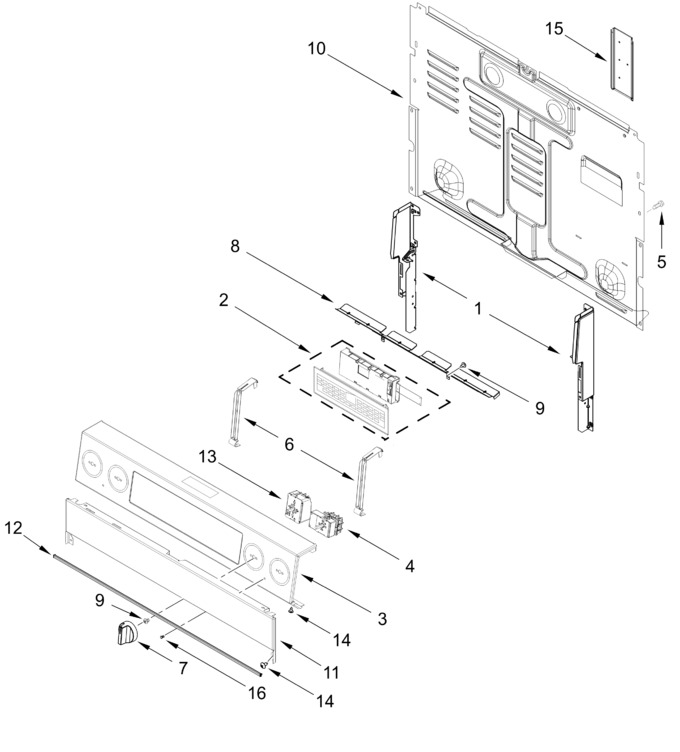

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11728387 Console, Endcap (stainless, Left)   (Replaces: W11625424) Special Order $ 104.57

2 W11839352 Electronic, Control (lcx)   (Replaces: W11436172) Special Order $ 577.43

3 W11730308 Panel, Console (stainless)   (Replaces: W11730183) In-Stock Immediately $ 323.10

4 W10857622 Switch, Infinite   (Replaces: W10437092) In-Stock Immediately $ 226.69

5 W11233072 Screw   (Replaces: 3196178) In-Stock Immediately $ 13.25

6 W11728256 Bracket, Control   (Replaces: W11371599) Appelez-nous -
7 W11730309 Knob (stainless)   (Replaces: W11436130) In-Stock Immediately $ 61.73

8 W11730262 Shield, Heat   (Replaces: W11363806) Special Order $ 78.37

9 WP3400882 Screw   (Replaces: 3400882) In-Stock Immediately $ 6.80

10 W11729935 Cover, Upper Rear   (Replaces: W11392241) In-Stock Immediately $ 118.82

11 W11729961 Panel, Lower (stainless)   (Replaces: W11625404) In-Stock Immediately $ 196.92

12 W11728258 Gasket, Lower Panel   (Replaces: W11643797) Special Order $ 52.20

13 W10911303 Switch, Infinite   (Replaces: W10578768) In-Stock Immediately $ 108.94

14 WP3196557 Screw   (Replaces: 3196169) In-Stock Immediately $ 7.16

15 W11729912 Cover, Rear Flue   (Replaces: W11394231) In-Stock Immediately $ 95.88

16 WP3196068 Lens, Indicator   (Replaces: 3196068) In-Stock Immediately $ 5.91

ARI283693F3486669333C7F1EE938CD8A5B (right Rear) Appelez-nous -
W11728386 Console, Endcap (stainless, Right)   (Replaces: W11625421) In-Stock Immediately $ 104.57

ARI76BF577D359F4F7B6AC1C45BB9FB0006 (left Front) Appelez-nous -
W11661906 Switch, Infinite   (Replaces: W10843843) In-Stock Immediately $ 22.46

ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9 (left Rear) Appelez-nous -
ARIA12C7E5D311C54B1AACBC1820DF34957 (right Front) Appelez-nous -
W11730306 Switch, Infinite   (Replaces: W11637795) Special Order $ 150.19
