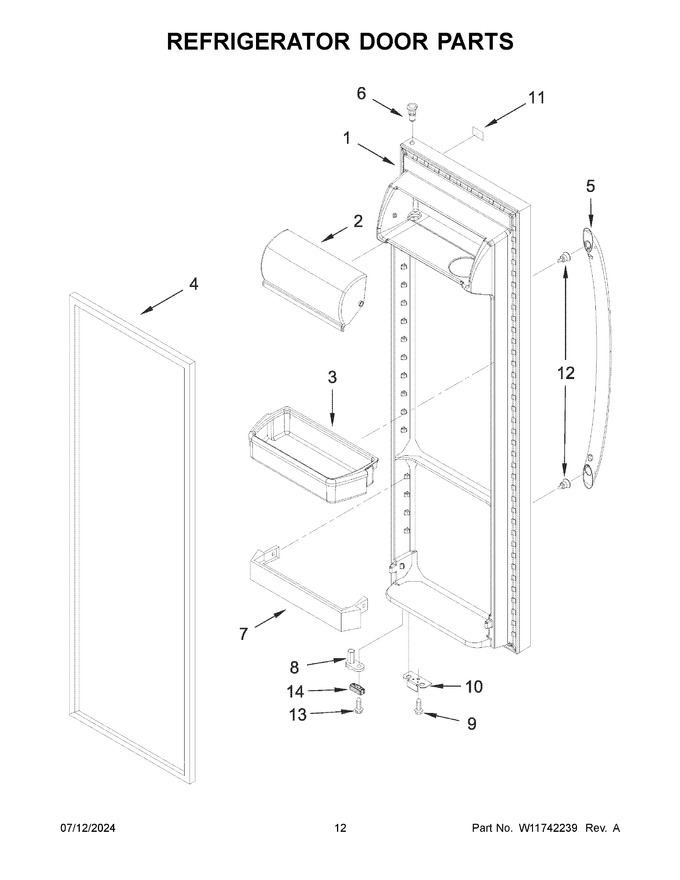

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10912366 | Door, Refrigerator (includes Door Gasket) (white) (Replaces: W10912366) |
|
$ 807.06 | |||||
| 2 | WP2256101 | Door, Compartment (Replaces: 2256101) |
|
Immediately | $ 80.48 | ||||
| 3 | W11174793 | Bin, Door (Replaces: W11034658) |
|
$ 144.92 | |||||
| 4 | 2159073 | Gasket, Door (beige) (Replaces: W10912372) |
|
Immediately | $ 299.87 | ||||
| 5 | W10210942A | Handle (white) (Replaces: W10210942) |
|
$ 116.58 | |||||
| 6 | WP2182181 | Thimble (Replaces: 2200087) |
|
$ 7.34 | |||||
| 7 | WP2309941 | Trivet (Replaces: 2309941) |
|
Immediately | $ 70.65 | ||||
| 8 | W11397972 | Thimble, Cam (Replaces: W10900464) |
|
$ 12.41 | |||||
| 9 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 7.25 | |||||
| 10 | W11557261 | Bracket, Door Stop (Replaces: W11481760) |
|
Immediately | $ 16.80 | ||||
| 11 | W11428492 | Badge (white) (Replaces: W11046244) |
|
$ 75.21 | |||||
| 12 | WPW10288153 | Screw (Replaces: W10288153) |
|
Immediately | $ 8.69 | ||||
| 13 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 10.25 | |||||
| 14 | W11687672 | Bumper, Door (white) (Replaces: W10407175) |
|
$ 13.44 |
