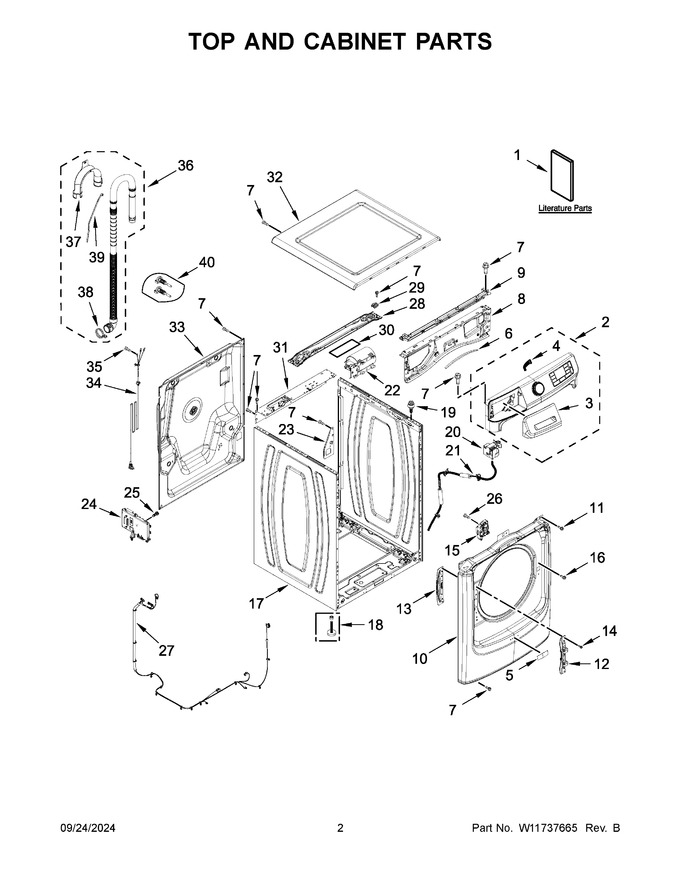

02 - Top And Cabinet Parts
03 - Door Parts
04 - Dispenser Parts
05 - Water System Parts
06 - Tub And Basket Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11646252 | Owners Manual |
|
- | |||||
| 2 | W11780441 | Assembly, Console (midnight Steel) (Replaces: W11669627) |
|
$ 614.25 | |||||
| 3 | W11742709 | Handle, Drawer (midnight Steel) (Replaces: W11667936) |
|
- | |||||
| 4 | W11733851 | Jumper, Harness Hmi (board To Board) (Replaces: W11670388) |
|
- | |||||
| 5 | WPW10612925 | Badge (Replaces: W10612925) |
|
Immediately | $ 38.12 | ||||
| 6 | W11316770 | Edge Guard (Replaces: W10407376) |
|
- | |||||
| 7 | W11568617 | Screw (Replaces: W10567155) |
|
$ 13.25 | |||||
| 8 | W11314678 | Bracket, Console (Replaces: W10915381) |
|
$ 140.42 | |||||
| 9 | W11458348 | Channel, Water (Replaces: W10796898) |
|
- | |||||
| 10 | W11742711 | Panel, Front (midnight Steel) (Replaces: W11538082) |
|
$ 406.04 | |||||
| 11 | WP273556 | Screw (Replaces: 357640) |
|
Immediately | $ 7.59 | ||||
| 12 | WPW10208415 | Hinge, Base (Replaces: W10208415) |
|
Immediately | $ 119.99 | ||||
| 13 | W10299097 | Bracket, Hinge |
|
$ 19.02 | |||||
| 14 | W11661566 | Screw (Replaces: W10288126) |
|
$ 13.26 | |||||
| 15 | W11733849 | Lock, Door (Replaces: W11670890) |
|
Immediately | $ 66.56 | ||||
| 16 | WP8540282 | Screw (Replaces: 8540282) |
|
$ 10.93 | |||||
| 17 | W11540198 | Cabinet (midnight Steel) |
|
- | |||||
| 18 | W11675697 | Leveling Leg Assembly (Replaces: W11604388) |
|
Immediately | $ 12.83 | ||||
| 19 | W10208380 | Screw And Bushing Assembly |
|
$ 65.23 | |||||
| 20 | W11316246 | Pressure Switch (Replaces: W11125159) |
|
Immediately | $ 112.52 | ||||
| 21 | W11456953 | Hose, Pressure Switch (Replaces: W11319791) |
|
Immediately | $ 31.41 | ||||
| 22 | W11689659 | Rfi Filter (Replaces: W11533492) |
|
Immediately | $ 20.24 | ||||
| 23 | W11316769 | Bracket, Drain Hose (Replaces: W11091443) |
|
Immediately | $ 19.88 | ||||
| 24 | W11747034 | Appliance Control Unit (acu) (Replaces: W11733296) |
|
Immediately | $ 437.83 | ||||
| 25 | W11318750 | Screw (Replaces: W10864034) |
|
- | |||||
| 26 | W10306501 | Screw |
|
- | |||||
| 27 | W11739822 | Harness, Main Lower (Replaces: W11668660) |
|
$ 216.43 | |||||
| 28 | W10467484 | Brace, Top |
|
$ 40.48 | |||||
| 29 | W11846996 | Retainer, Spring (Replaces: W10245452) |
|
$ 9.06 | |||||
| 30 | W11314674 | Foam Pad (Replaces: W10331064) |
|
$ 17.91 | |||||
| 31 | W11353016 | Bracket, Rear |
|
$ 22.43 | |||||
| 32 | W11742712 | Top (midnight Steel) (Replaces: W11538075) |
|
- | |||||
| 33 | W11315708 | Panel, Rear (Replaces: W11046440) |
|
$ 362.44 | |||||
| 34 | W11316254 | Cord, Power (Replaces: W10919946) |
|
Immediately | $ 121.06 | ||||
| 35 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 7.38 | ||||
| 36 | W11551765 | Hose, Drain (external) (Replaces: W11392677) |
|
Immediately | $ 22.74 | ||||
| 37 | WPW10280024 | U-bend, Drain Hose (Replaces: W10280024) |
|
$ 75.16 | |||||
| 38 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 7.67 | ||||
| 39 | WPW10339879 | Cable Tie (Replaces: W10267532) |
|
$ 7.47 | |||||
| 40 | W11316629 | Bolt, Transport (short) (Replaces: W11041011) |
|
$ 39.36 | |||||
| 1A | W11678279 | Quick Start Guide |
|
- | |||||
| 1B | W11685930 | Energy Guide |
|
- |
