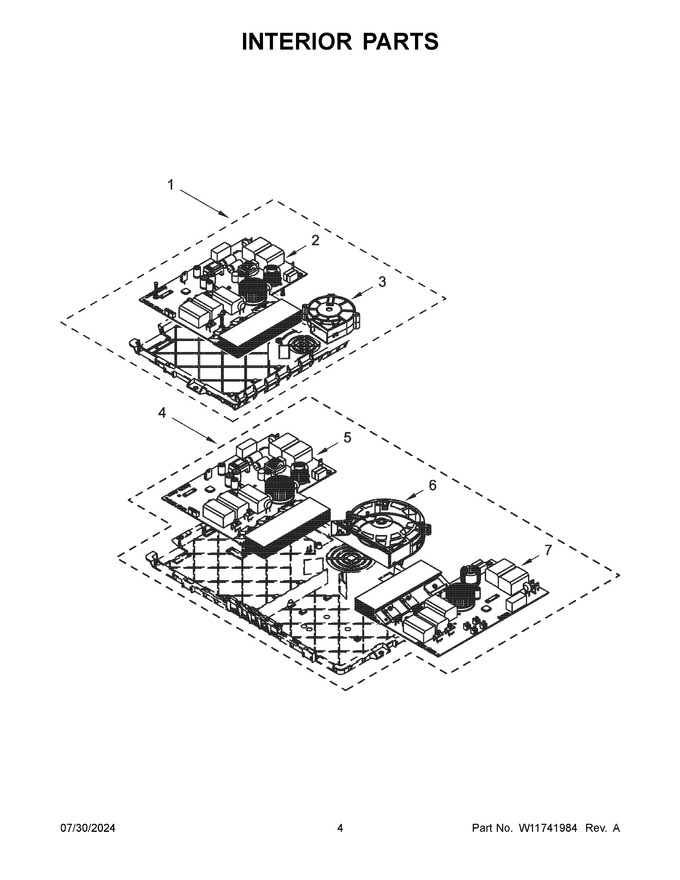

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11742047 | I100 Induction Domino Module Assembly (Replaces: W11716152) |
|
Immediately | $ 761.64 | ||||
| 2 | ARI101487CA05668106E3DF59ED7491D96A | Power Board Ascari (not Serviced) |
|
- | |||||
| 3 | W11251205 | Blower Assembly (domino) |
|
Immediately | $ 164.57 | ||||
| 4 | W11838713 | I100 Ipc Induction Module Assembly (Replaces: W11716151) |
|
Immediately | $ 635.96 | ||||
| 5 | ARI101487CA05668106E3DF59ED7491D96A | Power Board Ascari (not Serviced) |
|
- | |||||
| 6 | W11246545 | Blower Assembly |
|
Immediately | $ 279.85 | ||||
| 7 | ARI4BFEEDA8AD96A9CEE26F616D6B45A9E2 | Power Board Farina (not Serviced) |
|
- | |||||
| NI | W11249830 | Communication Harness (ipc1 To Ipc2) |
|
$ 47.65 | |||||
| NI | W11347982 | Jumper Harness (hmi To Ipc) |
|
Immediately | $ 53.91 | ||||
| NI | ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | |||||
| NI | W11249832 | Communication Harness (ipc2 To Ipc3) |
|
Immediately | $ 32.83 |
