01 - Cover Sheet
02 - Cooktop Parts

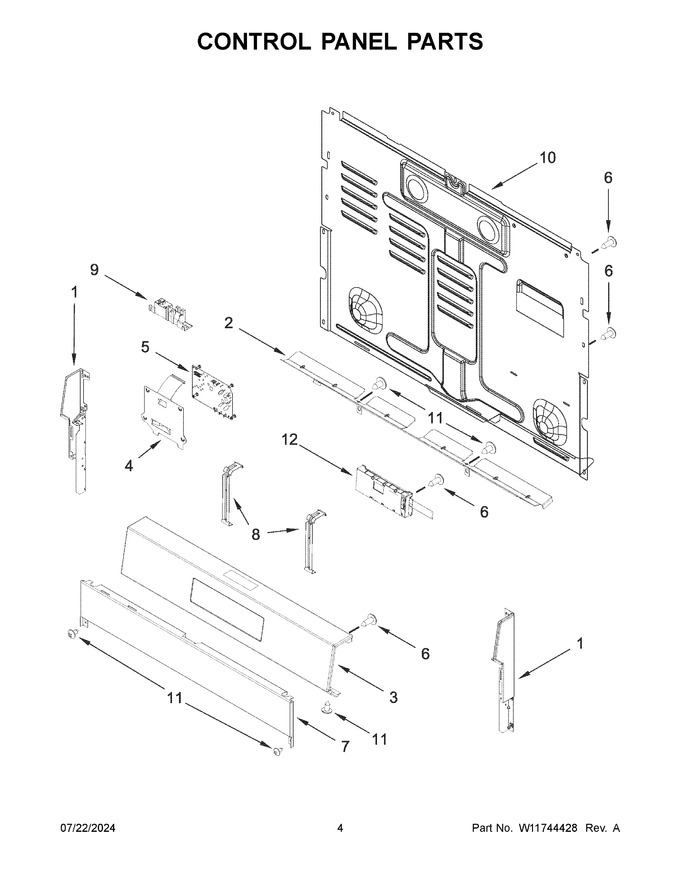

03 - Control Panel Parts
04 - Manifold Parts
05 - Chassis Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11730342 | Endcap (black (left)) (Replaces: W11327041) |
|
$ 105.67 | |||||
| 2 | W11747326 | Shield, Heat (Replaces: W11736649) |
|
- | |||||
| 3 | W11730275 | Panel, Control (black Stainless) (Replaces: W11299267) |
|
Immediately | $ 210.11 | ||||
| 4 | W11750420 | Bracket, Mounting (dsi) (Replaces: W11736648) |
|
- | |||||
| 5 | W10898291 | Module, Spark Dsi (Replaces: W10818365) |
|
Immediately | $ 329.08 | ||||
| 6 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 7 | W11730081 | Panel, Lower (black) (Replaces: W11625443) |
|
- | |||||
| 8 | W11713812 | Bracket, Control (Replaces: W11290750) |
|
$ 27.33 | |||||
| 9 | W11703692 | Spark Module (Replaces: W11350452) |
|
Immediately | $ 86.99 | ||||
| 10 | W11730305 | Cover, Back (Replaces: W11393670) |
|
- | |||||
| 11 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 12 | W11764619 | Control, Electronic (lcx) (black) (Replaces: W11639407) |
|
$ 377.36 | |||||
| 1A | W11730343 | Endcap (black (right)) (Replaces: W11327043) |
|
$ 105.67 | |||||
| 3A | W11730079 | Panel, Control (stainless) (Replaces: W11299266) |
|
$ 211.90 |
