01 - Cover Sheet

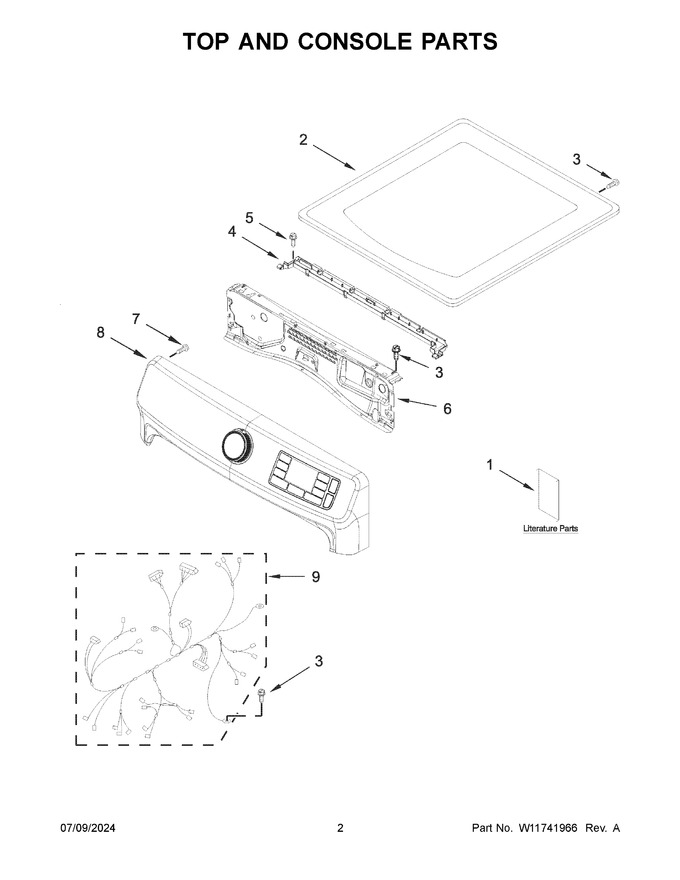

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Burner Assembly Parts
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11685647 | Owners Manual |
|
- | |||||
| 2 | WPW10208383 | Top (white) (Replaces: W10208383) |
|
$ 291.54 | |||||
| 3 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 4 | W11310027 | Channel, Water (Replaces: W11255768) |
|
$ 21.37 | |||||
| 5 | W11686675 | Screw (Replaces: 12990702) |
|
$ 12.84 | |||||
| 6 | W11480682 | Bracket, Console |
|
$ 73.09 | |||||
| 7 | WP8533993 | Screw (Replaces: W10146359) |
|
$ 10.09 | |||||
| 8 | W11742738 | Assembly, Console (white) (Replaces: W11669635) |
|
Immediately | $ 780.87 | ||||
| 9 | W11157861 | Harness, Main |
|
$ 229.83 | |||||
| 1A | W11685591 | Tech Sheet |
|
- | |||||
| 1B | W11685594 | Quick Start Guide |
|
- |
