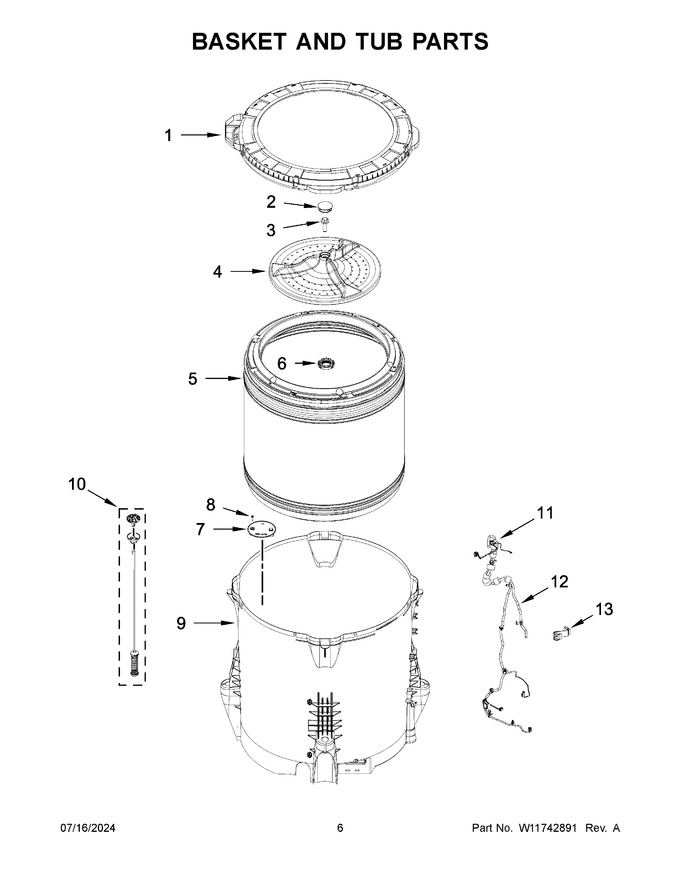

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10849477 | Tub Ring (Replaces: W10578859) |
|
$ 175.21 | |||||
| 2 | W11050804 | Cap, Impeller (Replaces: W10609549) |
|
Immediately | $ 7.36 | ||||
| 3 | W10752187 | Screw (Replaces: W10625252) |
|
Immediately | $ 8.43 | ||||
| 4 | W10752283 | Impeller (washplate) (Replaces: W10834890) |
|
Immediately | $ 125.09 | ||||
| 5 | W11513244 | Basket Assembly (Replaces: W11459622) |
|
Immediately | $ 400.30 | ||||
| 6 | W11551646 | Basket, Lock Nut (Replaces: W11183985) |
|
Immediately | $ 12.80 | ||||
| 7 | W11568797 | Filter, Drain Pump (Replaces: W11089264) |
|
Immediately | $ 25.32 | ||||
| 8 | WP8533928 | Screw (Replaces: 8533928) |
|
Immediately | $ 7.43 | ||||
| 9 | W11219115 | Tub |
|
$ 348.38 | |||||
| 10 | W11130362 | Damper Assembly, Tub Suspension (set Of 4-includes Suspension Bushings And Suspension Balls) (Replaces: W11228718) |
|
Immediately | $ 151.93 | ||||
| 11 | W11643701 | Harness, Lower (Replaces: W11335100) |
|
Immediately | $ 128.00 | ||||
| 12 | WP353244 | Hose, Pressure Switch (Replaces: W10590949) |
|
Immediately | $ 78.00 | ||||
| 13 | W11755726 | Clip, Harness (Replaces: W11284522) |
|
Immediately | $ 6.95 |
