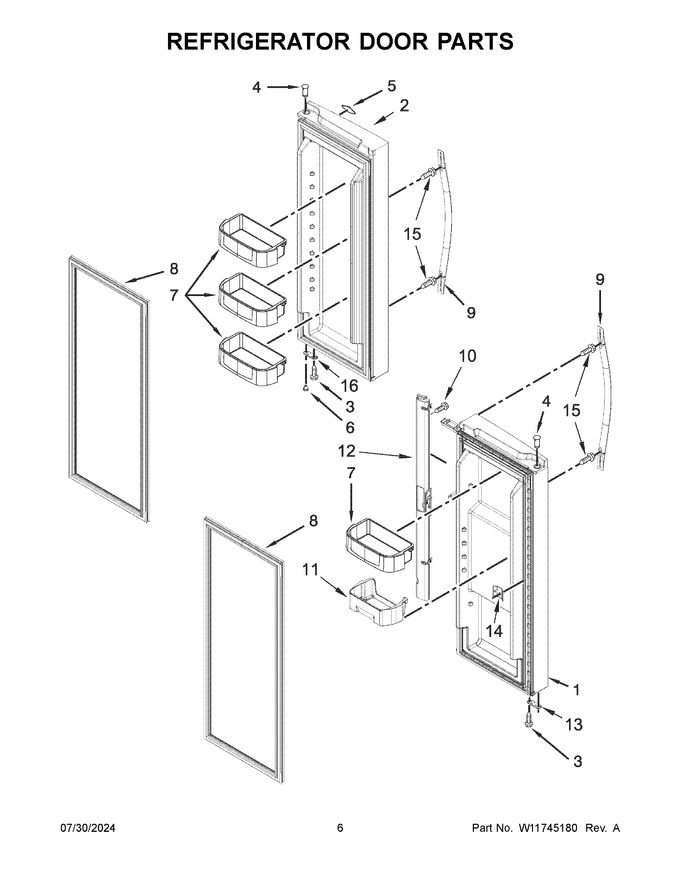

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW10721544		Door, Left (includes Part #8) (white)   (Replaces: W10721544)				$ 919.70
2	LW10721540		Door Right (includes #8) (white)   (Replaces: W10721540)				$ 915.34
3	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.43
4	W11544568		Thimble, Top   (Replaces: W10366270)			Immediately	$ 12.56
5	W11178521		Badge   (Replaces: W10884775)			Immediately	$ 56.82
6	WPW10470155		Closure, Door   (Replaces: W10470155)			Immediately	$ 6.80
7	WPW10308869		Bin, Medium   (Replaces: W10308869)			Immediately	$ 69.93
8	W10460612		Gasket (beige)   (Replaces: W10353189)			Immediately	$ 281.09
9	W11127179		Handle Assembly (white)   (Replaces: W11101973)			Immediately	$ 171.40
10	W10854958		Screw   (Replaces: 12990302)				$ 7.11
11	WPW10326335		Bin, Shallow   (Replaces: W10326335)			Immediately	$ 58.31
12	WPW10624451		Flipper Mullion Assembly (white)   (Replaces: W10624451)			Immediately	$ 119.34
13	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
14	WP939101		Screw Anchor   (Replaces: 939101)				$ 7.09
15	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 11.59
16	WPW10397055		Bracket, Door Stop   (Replaces: W10397055)			Immediately	$ 33.25
12A	WPW10624450		Flipper Mullion Assembly (grey)   (Replaces: W10624450)			Immediately	$ 214.00
1A	LW10858415		Door, Left (includes Part #8) (stainless)   (Replaces: W10858415)				$ 824.16
2A	LW10858417		Door Right (includes #8) (stainless)   (Replaces: W10858417)				$ 756.26
8A	WPW10460580		Gasket (grey)   (Replaces: W10413468)			Immediately	$ 241.88
9A	W11123099		Handle Assembly (stainless)   (Replaces: W11101971)			Immediately	$ 171.40
