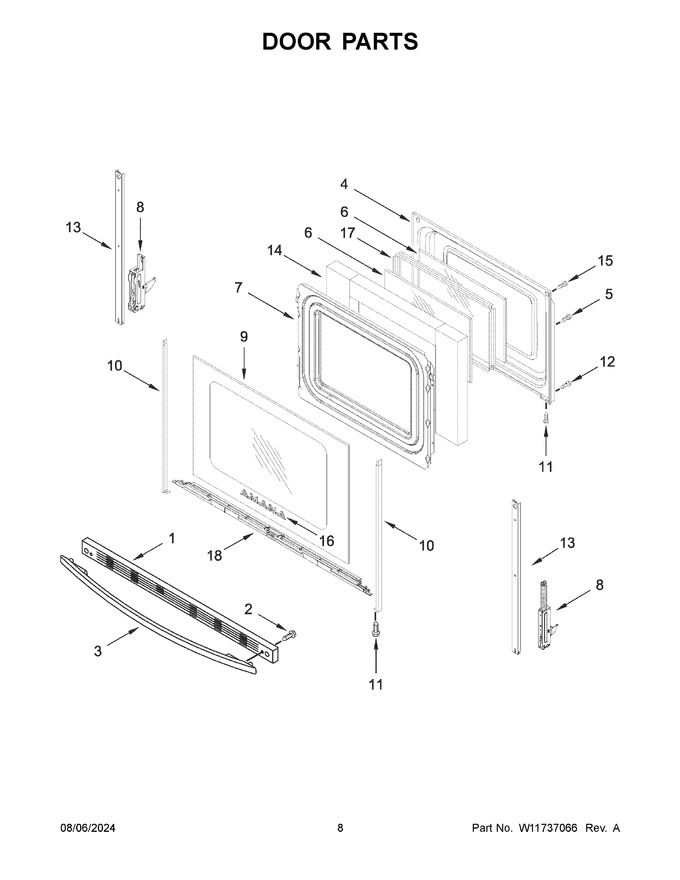

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10310922		Trim, Top (black)   (Replaces: W10310922)			Immediately	$ 157.83
2	WP8533988		Screw   (Replaces: W10155511)			Immediately	$ 7.90
3	WPW10144883		Handle, Door (stainless)   (Replaces: W10144883)				$ 227.39
4	WP9761344		Liner, Door   (Replaces: 9761344)			Immediately	$ 335.60
5	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 7.87
6	WP8053948		Glass, Inner   (Replaces: 9758162)			Immediately	$ 208.85
7	W11539580		Retainer, Insulation   (Replaces: W11380222)				$ 209.98
8	WPW10299224		Hinge, Active (with Spring)   (Replaces: W10299224)			Immediately	$ 66.14
9	W11627546		Glass, Outer (stainless)   (Replaces: W11603159)			Immediately	$ 392.30
10	W10761018		Trim, Door (black (left))   (Replaces: W10746436)			Immediately	$ 49.32
11	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 7.92
12	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.43
13	W11502236		Strap, Door   (Replaces: W11379944)			Immediately	$ 24.91
14	WPW10278991		Insulation, Door Strip   (Replaces: W10278991)			Immediately	$ 91.23
15	WPW10200660		Screw   (Replaces: W10200660)			Immediately	$ 7.42
16	W11240541		Badge (stainless)   (Replaces: W10846752)			Immediately	$ 70.16
17	WPW10316950		Frame, Glass   (Replaces: W10316950)			Immediately	$ 81.08
18	W11440159		Trim, Bottom Door			Immediately	$ 56.47
10A	W10761014		Trim, Door (black (right))   (Replaces: W10746435)			Immediately	$ 65.66
8A	WPW10299227		Hinge, Door (passive)   (Replaces: W10299227)			Immediately	$ 63.67

    View Diagram in Separate Window       Print Part List
