SELECT A DIAGRAM

01 - Cover Sheet

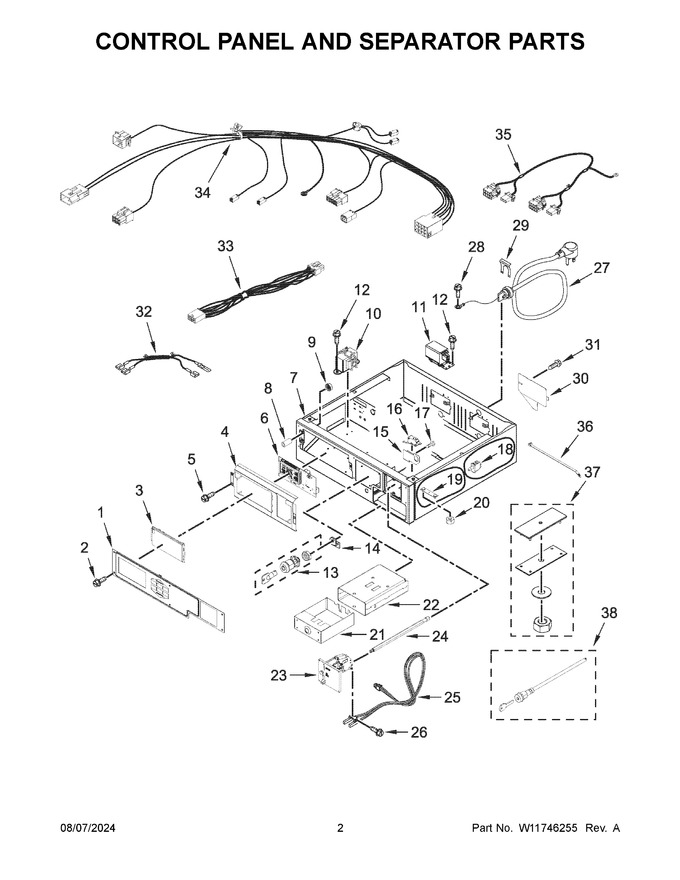

02 - Control Panel And Separator Parts


03 - Lower Cabinet And Front Panel Parts


04 - Upper Cabinet And Front Panel Parts


05 - Upper And Lower Bulkhead Parts


06 - Burner Assembly Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11743895		Facia Console   (Replaces: W11651081)		Appelez-nous	-
2	WPW10131119		Screw   (Replaces: W10386302)				$ 6.57
3	WPW10133268		Cover, Display   (Replaces: W10133268)				$ 66.54
4	W10657185		Plate, Control Mounting		Appelez-nous	-
5	W10756178		Screw   (Replaces: W10140652)				$ 5.66
6	W11743892		Cntrl-elec   (Replaces: W11582595)		Appelez-nous	-
7	W11743896		Collar (not Illustrated)   (Replaces: W11455498)		Appelez-nous	-
8	W11117166		Standoff, Circuit Board   (Replaces: W10133514)		Appelez-nous	-
9	WPW10139046		Nut   (Replaces: W10139046)				$ 8.31
10	WPW10133285		Transformer 120vac To 22.5vac   (Replaces: W10133285)				$ 193.23
11	WPW10367632		Filter, Rfi   (Replaces: W10306592)				$ 115.50
12	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 7.43
13	W11231586		Assembly, Lock   (Replaces: W11223375)		Appelez-nous	-
14	W11165684		Cam, Locking   (Replaces: W10913660)				$ 8.61
15	W10160652		Bracket-switch		Appelez-nous	-
16	WPW10447152		Switch, Service Access   (Replaces: W10447152)				$ 38.93
17	3400408		Screw		Appelez-nous	-
18	WPW10131838		Switch, Vault Service Door   (Replaces: W10131838)				$ 22.60
19	W10159907		Assembly, Mounting Strap Weld		Appelez-nous	-
20	WPW10080190		Nut, Hex (left Hand Thread)   (Replaces: W10001120)			Immediately	$ 9.01
21	W11204019		Box, Coin   (Replaces: W11109086)				$ 147.47
22	W11204020		Assembly, Vault Body   (Replaces: W11109083)				$ 379.55
23	WPW10133242		Assembly, Single Coin Drop   (Replaces: W10133242)				$ 126.51
24	WPW10137319		Bolt, Hex Bar   (Replaces: W10137319)				$ 76.83
25	WPW10247389		Coin Optic Sensor Assembly (white)   (Replaces: W10247389)			Immediately	$ 109.53
26	WP3395530		Screw   (Replaces: W10142655)				$ 7.71
27	W11743894		Cord-power   (Replaces: W11332324)		Appelez-nous	-
28	W10850756		Screw   (Replaces: W10773242)				$ 7.38
29	W11712577		Clip, Strain Relief   (Replaces: 694415)			Immediately	$ 6.99
30	W11539855		Cover, Terminal Block   (Replaces: 3396795)			Immediately	$ 566.78
31	WP90767		Screw   (Replaces: 3390814)			Immediately	$ 7.43
32	W10188051		Jumper, Line Filter		Appelez-nous	-
33	W10111027		Jumper, Transformer				$ 43.29
34	W10807484		Harness, Collar		Appelez-nous	-
35	W10807493		Jumper, Lower To Collar		Appelez-nous	-
36	WPW10155270		Cable Tie   (Replaces: W10155270)				$ 6.32
37	W11416034		Kit-coin Box, Security (to Be Serviced As A Kit)   (Replaces: W10169579)				$ 119.07
38	W11308563		Assembly, Lock (bayonet)   (Replaces: W11208380)		Appelez-nous	-
7A	WP33001882		Screw, Collar To Cabinet Flange   (Replaces: 337686)				$ 75.34
7B	3400500		Bolt, Collar To Lower Cabinet			Immediately	$ 12.64

    View Diagram in Separate Window       Print Part List
