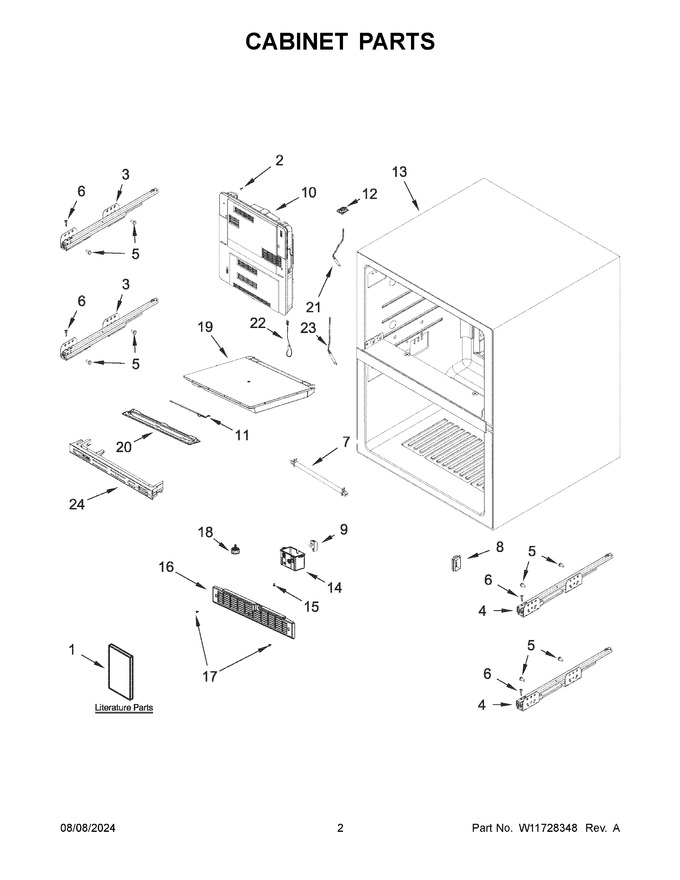

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11537005		Energy Guide		Appelez-nous	-
2	W10774183		Screw		Appelez-nous	-
3	W11599889		Rail Assembly, Left Hand				$ 200.47
4	W11599890		Rail Assembly, Right Hand				$ 201.48
5	W10621524		Screw				$ 16.10
6	W10204809		Screw		Appelez-nous	-
7	W11580231		Defrost Holder And Heater		Appelez-nous	-
8	W11568783		Switch, Case				$ 20.66
9	W11266082		Switch, Door   (Replaces: W11265587)			Immediately	$ 36.73
10	W11758150		Cover Assembly, Evaporator   (Replaces: W11728607)		Appelez-nous	-
11	W11497301		Assembly, Led   (Replaces: W11492253)				$ 73.85
12	W11580230		Connector, Cover		Appelez-nous	-
13	ARI89959A0406B9B609EB9764890B107614		Cabinet (not A Servicable Part)		Appelez-nous	-
14	W11568794		Assembly, Switch Box				$ 173.50
15	W11371097		Screw		Appelez-nous	-
16	W11580233		Kick Plate				$ 74.89
17	W11675284		Screw   (Replaces: W11371095)				$ 14.35
18	W11106296		Leg, Leveling   (Replaces: 4344763)				$ 17.13
19	W11580290		Assembly, Separator		Appelez-nous	-
20	W11312450		Cover, Led		Appelez-nous	-
21	W11359415		Fuse, Temperature				$ 98.35
22	W11747626		Sensor Pcc (upper)   (Replaces: W11728555)		Appelez-nous	-
23	W11747627		Sensor Pcc (lower)   (Replaces: W11728556)		Appelez-nous	-
24	W11758139		Assembly, Trim   (Replaces: W11728576)		Appelez-nous	-
1A	W11533206		Use And Care Guide		Appelez-nous	-
