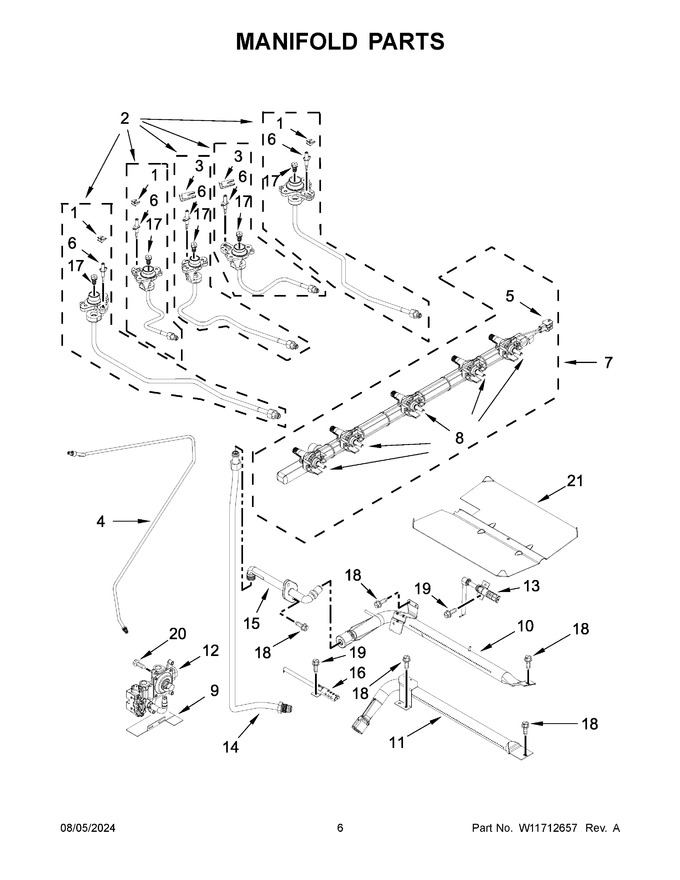

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11684564 | Electrode, Spring (Replaces: W10827923) |
|
Immediately | $ 11.39 | ||||
| 2 | W11122530 | Assembly, Orifice (left Front) (Replaces: W10867777) |
|
$ 90.12 | |||||
| 3 | W11084050 | Clip, Electrode |
|
$ 19.83 | |||||
| 4 | W11107282 | Tube, Supply |
|
$ 141.61 | |||||
| 5 | W10885903 | Harness, Spark Switch |
|
$ 171.27 | |||||
| 6 | W11661929 | Electrode, Burner (left Front, Left Rear) (Replaces: W10669526) |
|
Immediately | $ 45.19 | ||||
| 7 | W11504626 | Assembly, Manifold |
|
$ 296.50 | |||||
| 8 | W11550543 | Valve, Gas (right Rear) (Replaces: W11259513) |
|
$ 75.47 | |||||
| 9 | W10224921 | Bracket, Aegis |
|
- | |||||
| 10 | W11676566 | Burner, Broiler (Replaces: W10439242) |
|
$ 85.48 | |||||
| 11 | W10764654 | Burner, Bake (Replaces: W10680035) |
|
Immediately | $ 82.49 | ||||
| 12 | W10861656 | Valve, Regulator (Replaces: W10554066) |
|
Immediately | $ 316.13 | ||||
| 13 | WPW10324262 | Igniter, Bake (Replaces: W10324262) |
|
Immediately | $ 103.79 | ||||
| 14 | W10306050 | Tube, Broil Supply (broiler Fitting To Valve) |
|
$ 170.84 | |||||
| 15 | W10583216 | Fitting, Broil Burner |
|
$ 86.27 | |||||
| 16 | WPW10333842 | Electrode, Broil (Replaces: W10333842) |
|
Immediately | $ 98.39 | ||||
| 17 | W10849722 | Orifice (18k) (left Front) |
|
- | |||||
| 18 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 19 | W11684507 | Screw (Replaces: 3196385) |
|
$ 12.84 | |||||
| 20 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 7.55 | |||||
| 21 | 3601P33645 | Baffle, Broil Burner |
|
- | |||||
| 17A | W11677633 | Orifice (5k) (left Rear) (Replaces: W10849719) |
|
$ 89.24 | |||||
| 17B | W10900013 | Orifice (15k) (right Front) |
|
- | |||||
| 17C | W10849714 | Orifice (9.5k) (right Rear) |
|
$ 84.11 | |||||
| 17D | W10907868 | Orifice (10k) (center) |
|
$ 81.62 | |||||
| 2A | W11122534 | Assembly, Orifice (left Rear) (Replaces: W10867779) |
|
$ 87.08 | |||||
| 2B | W11672515 | Assembly, Orifice (right Front) (Replaces: W10867780) |
|
$ 213.78 | |||||
| 2C | W11122547 | Assembly, Orifice (right Rear) (Replaces: W10867778) |
|
Immediately | $ 90.12 | ||||
| 2D | W11548769 | Assembly, Orifice (center) (Replaces: W11498076) |
|
$ 113.00 | |||||
| 6A | W11643126 | Electrode, Burner (center) (Replaces: W10669524) |
|
Immediately | $ 47.89 | ||||
| 6B | W11084034 | Electrode, Burner (right Front) |
|
$ 59.56 | |||||
| 6C | W11661897 | Electrode, Burner (right Rear) (Replaces: W10669523) |
|
$ 43.52 | |||||
| 8A | W11550545 | Valve, Gas (left Rear) (Replaces: W11259514) |
|
$ 74.66 | |||||
| 8B | W11550546 | Valve, Gas (left Front, Right Front, Center) (Replaces: W11259404) |
|
$ 77.27 |
