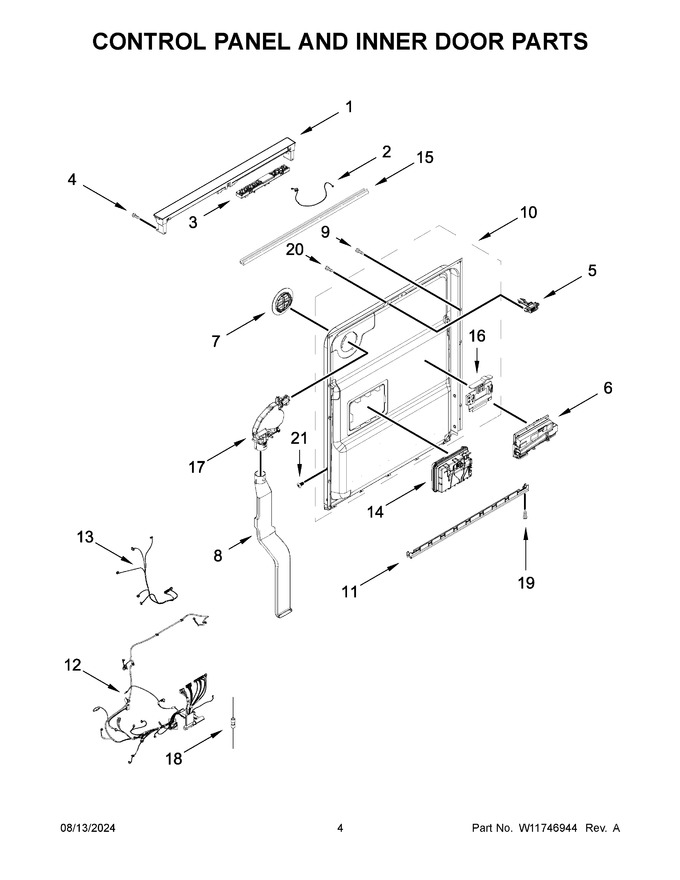

03 - Control Panel And Inner Door Parts


04 - Tub And Frame Parts


05 - Pump, Washarm And Motor Parts


06 - Upper Wash And Rinse Parts


07 - Upper Rack And Track Parts


08 - Lower Rack Parts


09 - Third Level Rack And Track Parts


10 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11731012		Console Assembly (includes Insert) (black)   (Replaces: W11673890)		Appelez-nous	-
2	W11627526		Jumper, Door   (Replaces: W11084865)			Immediately	$ 15.94
3	W11729617		Housing, Ui   (Replaces: W11696625)		Appelez-nous	-
4	WPW10213953		Screw (long)   (Replaces: W10711884)			Immediately	$ 6.80
5	W11412299		Latch Assembly (includes Switch)   (Replaces: W11091934)			Immediately	$ 26.73
6	W11731014		Control, Electronic   (Replaces: W11697848)		Appelez-nous	-
7	W11545290		Bezel, Vent   (Replaces: W11025634)			Immediately	$ 13.38
8	W11038734		Duct, Vent				$ 77.60
9	WPW10348409		Screw   (Replaces: W10348409)			Immediately	$ 7.38
10	W11559689		Inner Door Assembly   (Replaces: W11098822)				$ 353.75
11	W11664713		Seal, Door Bottom   (Replaces: W11563231)			Immediately	$ 54.70
12	W11735532		Wiring Harness, Main (includes Thermostat & Fuse)   (Replaces: W11649441)				$ 243.75
13	W11678803		Wiring Harness, Inner Door   (Replaces: W11630924)			Immediately	$ 20.16
14	W11412300		Dispenser Assembly   (Replaces: W11092649)			Immediately	$ 223.92
15	W11213719		Seal, Console/door   (Replaces: W11050927)			Immediately	$ 155.49
16	W11088985		Hanger, Control				$ 30.81
17	W11414073		Vent Assembly (includes Fan) (also Order Gasket)   (Replaces: W11038720)			Immediately	$ 178.71
18	W11397505		Fuse, In-line				$ 150.18
19	W11627527		Screw   (Replaces: W11258418)			Immediately	$ 13.25
20	WPW10348408		Screw   (Replaces: W10348408)			Immediately	$ 6.80
21	WP3400071		Screw   (Replaces: 3400071)			Immediately	$ 7.43
