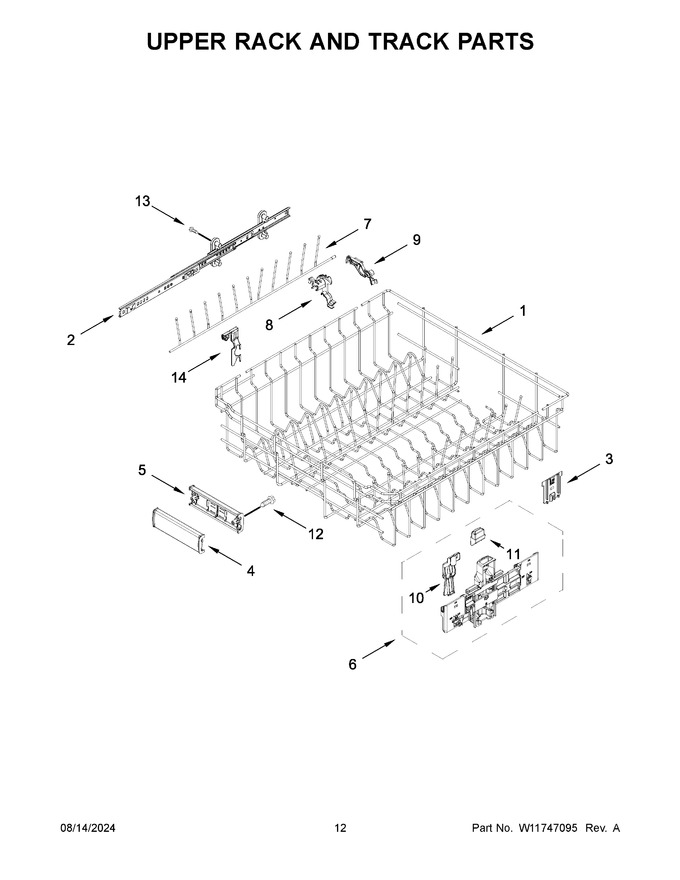

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10847873		Dishrack, Upper				$ 172.77
2	W11778689		Track, Assembly (left Hand)   (Replaces: W11212732)				$ 77.23
3	W11580020		Clip, Adjuster Arm   (Replaces: W11180605)			Immediately	$ 56.39
4	W11505218		Handle, Dishrack   (Replaces: W11268684)		Appelez-nous	-
5	W11505221		Handle, Dishrack Rear   (Replaces: W11373129)		Appelez-nous	-
6	W11685751		Rack Adjuster (left Hand)   (Replaces: W11180155)				$ 41.20
7	W11825505		Tine Row, Fold Down   (Replaces: W11189985)			Immediately	$ 61.80
8	W11179755		Positioner				$ 20.81
9	W11627535		Clip, Pivot   (Replaces: W11179753)				$ 23.83
10	W11180178		Leveler, Adjuster Arm				$ 68.54
11	W11180176		Button, Adjuster Arm		Appelez-nous	-
12	WP9741232		Screw   (Replaces: 9741232)			Immediately	$ 4.56
13	W11847092		Screw   (Replaces: W11170270)			Immediately	$ 10.58
14	W11373133		Clip, Stemware				$ 25.21
2A	W11778690		Track, Assembly (right Hand)   (Replaces: W11212734)			Immediately	$ 77.23
6A	W11180153		Rack Adjuster (right Hand)				$ 98.27

    View Diagram in Separate Window       Print Part List
