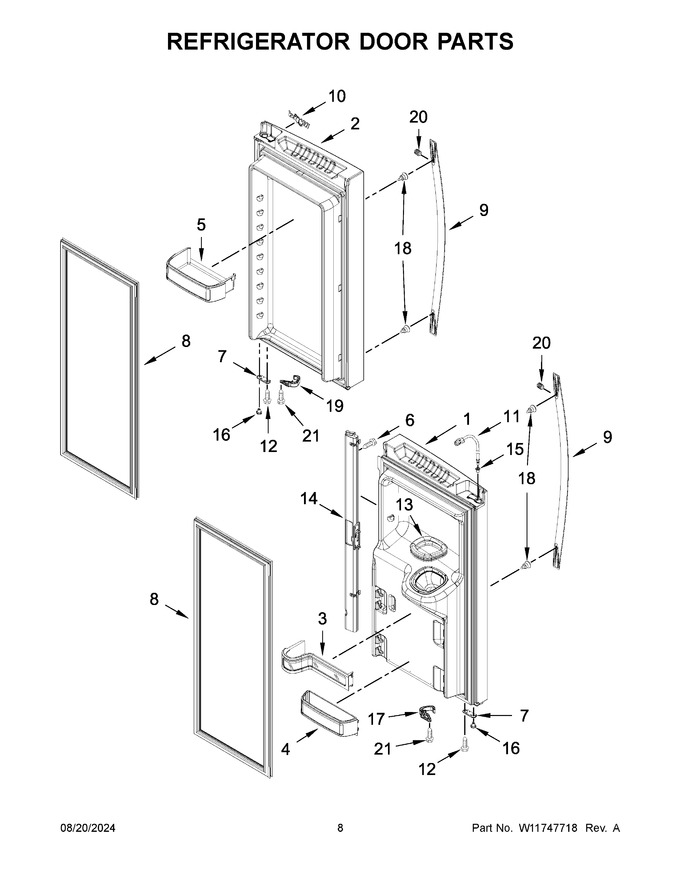

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11435344 | Door, Left (stainless) (Replaces: W11377225) |
|
$ 977.44 | |||||
| 2 | W11435343 | Door, Right (stainless) (Replaces: W11377230) |
|
$ 962.95 | |||||
| 3 | W11749487 | Bucket, Lh Upper (Replaces: W11698403) |
|
- | |||||
| 4 | W11749338 | Bucket, Small (Replaces: W11698402) |
|
$ 59.88 | |||||
| 5 | W11749336 | Bucket, Gallon (Replaces: W11698404) |
|
$ 60.60 | |||||
| 6 | W11311945 | Screw (Replaces: 12990204) |
|
$ 13.25 | |||||
| 7 | W11703060 | Stop, Door (grey) (Replaces: 12968202AP) |
|
$ 13.91 | |||||
| 8 | W10830055 | Gasket, Door (grey) |
|
Immediately | $ 255.29 | ||||
| 9 | W11163764 | Handle, Door (stainless) (Replaces: W11045530) |
|
Immediately | $ 164.98 | ||||
| 10 | W11223753 | Badge (Replaces: W10884773) |
|
Immediately | $ 78.53 | ||||
| 11 | W11677733 | Waterline, Door (Replaces: W11431179) |
|
$ 77.21 | |||||
| 12 | WP98165 | Screw (Replaces: 12990521) |
|
$ 7.71 | |||||
| 13 | WPW10287601 | Seal, Ice Chute (Replaces: W10287601) |
|
Immediately | $ 29.48 | ||||
| 14 | WP12722815AP | Mullion, Door (grey) (Replaces: 12722815AP) |
|
$ 304.21 | |||||
| 15 | 12996601 | Clip, Bushing |
|
$ 10.05 | |||||
| 16 | WP12028505AP | Closure, Door (grey) (Replaces: 12028505AP) |
|
Immediately | $ 55.31 | ||||
| 17 | W10918008 | Latch, Door Closer Left Hand (grey) (Replaces: W10833741) |
|
$ 15.88 | |||||
| 18 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 15.35 | ||||
| 19 | W10918010 | Latch, Door Closer Right Hand (grey) (Replaces: W10833739) |
|
Immediately | $ 15.88 | ||||
| 20 | W10907991 | Screw, Set (Replaces: W10693137) |
|
$ 6.80 | |||||
| 21 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 7.90 |
