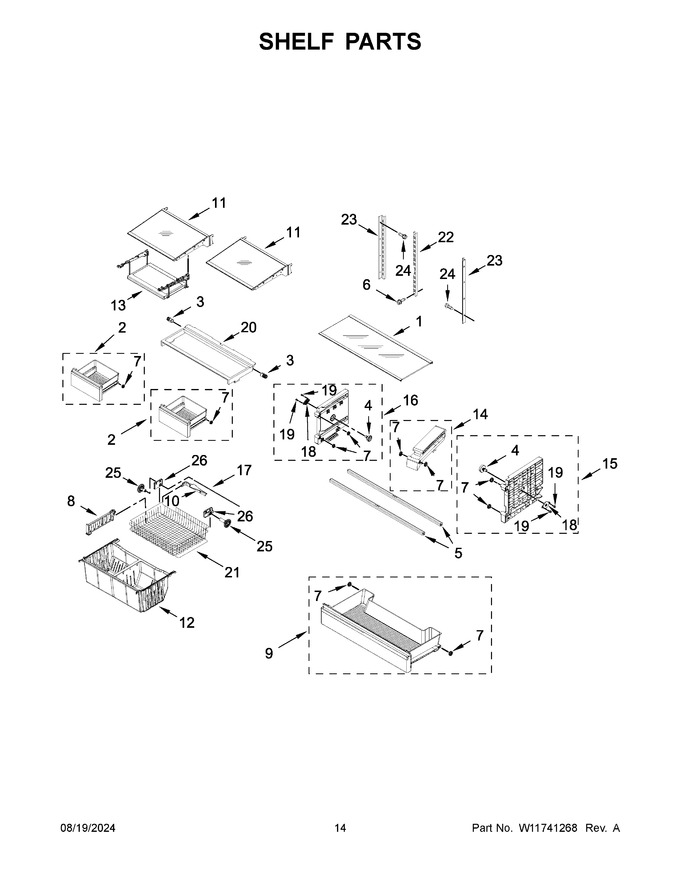

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11748382 | Cover, Pantry Glass (Replaces: W11710604) |
|
- | |||||
| 2 | W11748381 | Assembly, Crisper Pan (Replaces: W11694347) |
|
- | |||||
| 3 | W11748383 | Support, Crisper Frame (Replaces: W11705308) |
|
- | |||||
| 4 | W10840922 | Knob, Side Support |
|
- | |||||
| 5 | W11748466 | Brace, Crisper Support (Replaces: W11700717) |
|
- | |||||
| 6 | W10215666 | Screw |
|
$ 9.53 | |||||
| 7 | W11748380 | Assembly, Crisper Roller (Replaces: W11606482) |
|
- | |||||
| 8 | W10241046 | Divider, Basket (upper) |
|
Immediately | $ 29.19 | ||||
| 9 | W11748379 | Assembly, Pantry Pan (Replaces: W11694391) |
|
Immediately | $ 158.34 | ||||
| 10 | W10149389 | Lift, Bail Arm (Replaces: W10149389N) |
|
$ 92.66 | |||||
| 11 | W11749293 | Assembly, Shelf (Replaces: W11611160) |
|
$ 193.68 | |||||
| 12 | W11125514 | Bin, Lower (Replaces: W11028646) |
|
$ 137.83 | |||||
| 13 | W11749294 | Assembly, Nesting Shelf (Replaces: W11655022) |
|
- | |||||
| 14 | W11748465 | Assembly, Pan Center Support (Replaces: W11694397) |
|
- | |||||
| 15 | W11748463 | Adapter, Side (right Hand) (Replaces: W11694396) |
|
- | |||||
| 16 | W11748456 | Adapter, Side (left Hand) (Replaces: W11694395) |
|
- | |||||
| 17 | W11173556 | Shaft, Rack (Replaces: W10802333) |
|
$ 32.38 | |||||
| 18 | W10840918 | Flange, Side Support |
|
$ 93.47 | |||||
| 19 | W10847999 | Screw (Replaces: W10804977) |
|
$ 13.47 | |||||
| 20 | W11749295 | Frame, Crisper (Replaces: W11700893) |
|
- | |||||
| 21 | W11268538 | Basket, Freezer (upper) (Replaces: W11115548) |
|
Immediately | $ 199.45 | ||||
| 22 | W10273463 | Ladder, Center |
|
$ 29.61 | |||||
| 23 | WPW10569182 | Ladder, Side (Replaces: W10569182) |
|
$ 27.59 | |||||
| 24 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 7.30 | ||||
| 25 | WPW10474716 | Gear (left Hand) (Replaces: W10474716) |
|
Immediately | $ 32.42 | ||||
| 26 | W10348259 | Mount, Gear (left Hand) |
|
$ 89.87 | |||||
| 25A | WPW10474715 | Gear (right Hand) (Replaces: W10474715) |
|
Immediately | $ 32.76 | ||||
| 26A | W10348260 | Mount, Gear (right Hand) |
|
$ 89.90 |
