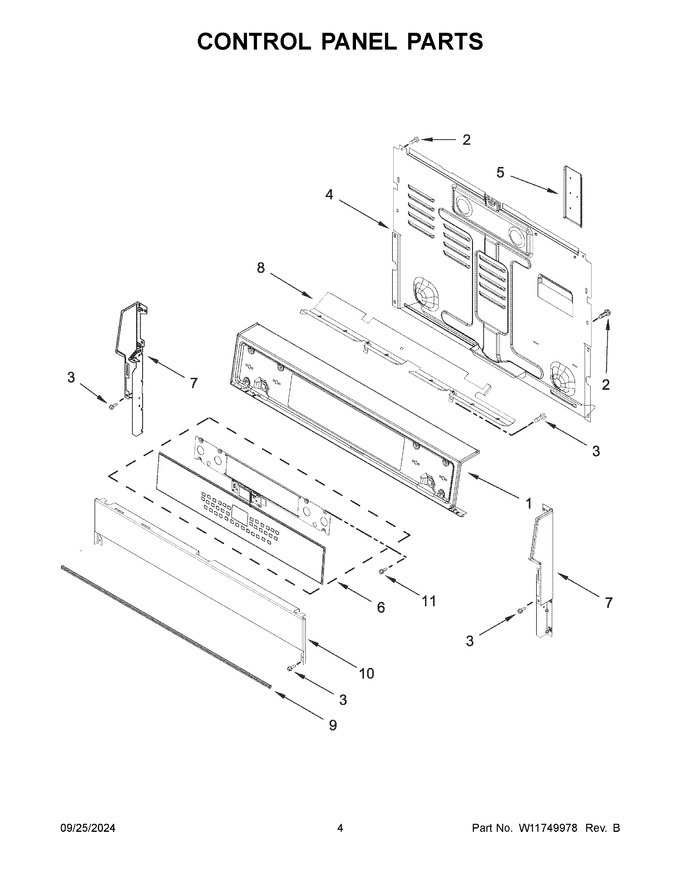

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11729940		Console (black)   (Replaces: W11385176)		Appelez-nous	-
2	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
3	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
4	W11729935		Cover, Upper Rear (left Front And Right Front)   (Replaces: W11392241)			Immediately	$ 118.82
5	W11729912		Cover, Rear Flue   (Replaces: W11394231)			Immediately	$ 95.88
6	W11729976		Assembly, User Interface   (Replaces: W11400085)				$ 495.13
7	W11728322		Endpost, Console (black (left))   (Replaces: W11625423)		Appelez-nous	-
8	W11730262		Shield, Heat   (Replaces: W11363806)				$ 78.37
9	W11728258		Gasket, Lower Panel   (Replaces: W11643797)				$ 52.20
10	W11728260		Panel, Lower (black)   (Replaces: W11625413)				$ 110.54
11	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 6.80
10A	W11726812		Panel, Lower (white)   (Replaces: W11625412)				$ 110.54
1A	W11726986		Console (white)   (Replaces: W11371987)		Appelez-nous	-
4A	W11661906		Switch, Infinite (left Rear)   (Replaces: W10843843)			Immediately	$ 21.38
4B	W10911303		Switch, Infinite (right Rear And Left Rear)   (Replaces: W10578768)			Immediately	$ 103.74
7A	W11728320		Endpost, Console (black (right))   (Replaces: W11625420)				$ 105.94
7B	W11726987		Endpost, Console (white (left))   (Replaces: W11625422)		Appelez-nous	-
7C	W11726989		Endpost, Console (white (right))   (Replaces: W11625418)		Appelez-nous	-
