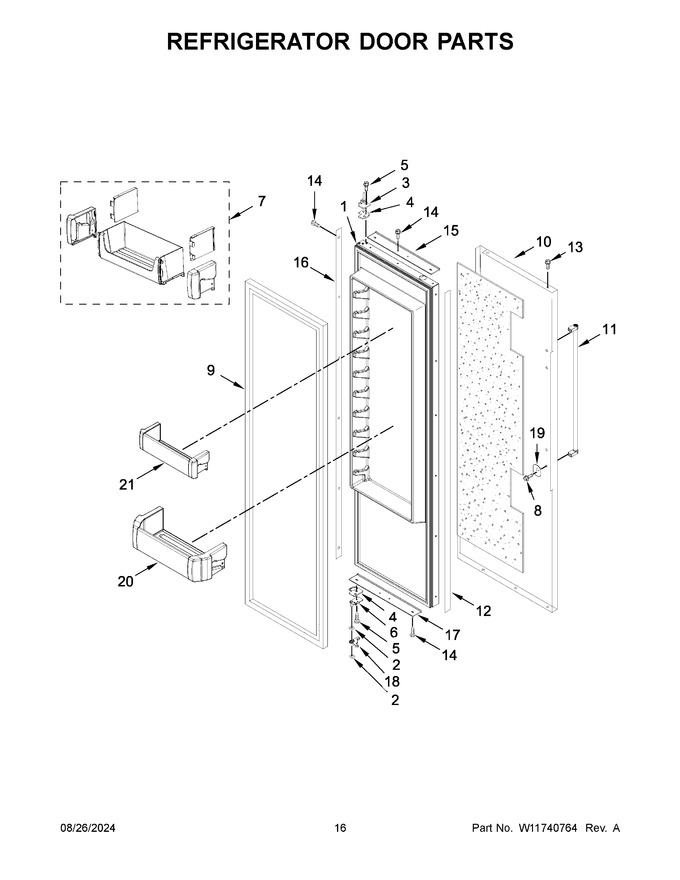

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11633394 | Door, Refrigerator (Replaces: W11576687) |
|
Immediately | $ 1,379.28 | ||||
| 2 | WP2006346 | Washer, Extension Arm (Replaces: 2006346) |
|
Immediately | $ 10.58 | ||||
| 3 | W11673500 | Assembly, Hinge (top) (Replaces: W10485980) |
|
Immediately | $ 117.33 | ||||
| 4 | W11673500 | Spacer, Door Hinge Bottom (Replaces: 2316804) |
|
Immediately | $ 117.33 | ||||
| 5 | W11474472 | Screw (Replaces: W10162602) |
|
Immediately | $ 7.77 | ||||
| 6 | 2302878 | Assembly, Hinge (bottom) |
|
Immediately | $ 81.91 | ||||
| 7 | W11627396 | Assembly, Top Door Bin (Replaces: W11610618) |
|
$ 166.63 | |||||
| 8 | WP308544 | Screw (Replaces: 308544) |
|
Immediately | $ 7.47 | ||||
| 9 | W11625077 | Gasket, Door (grey) (Replaces: W10760886) |
|
$ 347.32 | |||||
| 10 | W11797631 | Skin, Door (stainless Filler (not Serviced-included With Skin)) (Replaces: W10756464) |
|
$ 1,472.35 | |||||
| 11 | W10783284 | Handle, Door (stainless) (Replaces: W10541592) |
|
$ 195.04 | |||||
| 12 | W10758113 | Spacer, Handle Side Door |
|
- | |||||
| 13 | W10759522 | Screw (stainless) (Replaces: 488568) |
|
$ 7.42 | |||||
| 14 | W11748041 | Screw (stainless) (Replaces: W11672062) |
|
- | |||||
| 15 | W10761897 | Spacer, Door Skin (top) |
|
- | |||||
| 16 | W10756209 | Spacer, Hinge Side Door |
|
- | |||||
| 17 | W10761937 | Spacer, Door Skin (bottom) |
|
- | |||||
| 18 | W11700297 | Cover, Bottom Gap (Replaces: W10482554) |
|
Immediately | $ 34.45 | ||||
| 19 | W10127710 | Plate, Handle Door |
|
Immediately | $ 23.35 | ||||
| 20 | W11627397 | Bin, Gallon Door (Replaces: W11408930) |
|
$ 167.03 | |||||
| 21 | W11627398 | Bin, Shallow Door (Replaces: W11408938) |
|
$ 165.61 |
