Chassis Parts


Control Panel Parts

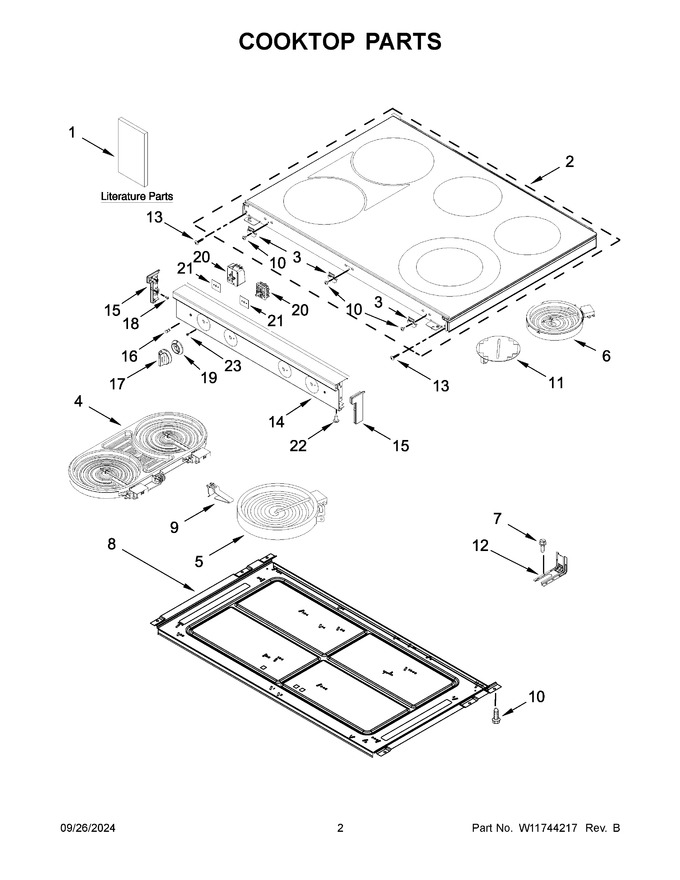

Cooktop Parts


Door Parts


Drawer Parts


Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11638635		Owners Manual		Appelez-nous	-
2	W11730427		Cooktop (black (includes, Cooktop Bracket))   (Replaces: W11629537)				$ 1,238.23
3	W11730543		Bracket, Cooktop   (Replaces: W11593284)			Immediately	$ 11.52
4	W11763590		Bridge, (1800w, 800w) (left Front And Left Rear)   (Replaces: W11724301)				$ 272.58
5	W11768719		Element (3000w) (right Front)   (Replaces: W11735737)				$ 184.49
6	W11747449		Element (single, 1200w) (right Rear)   (Replaces: W11724296)				$ 165.20
7	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
8	W11729951		Pan, Radiant Element   (Replaces: W11300812)				$ 223.66
9	W11663556		Spring, Element   (Replaces: W11600012)			Immediately	$ 14.84
10	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
11	W11706247		Element, Warm Zone (center)   (Replaces: W11668631)			Immediately	$ 133.94
12	W11839019		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 28.54
13	W11684512		Screw   (Replaces: 3400080)				$ 14.81
14	W11730071		Panel Upper, Manifold (black Stainless)   (Replaces: W11393097)			Immediately	$ 373.31
15	W11730066		Panel, Manifold End Cap (black Stainless (left))   (Replaces: W11361197)				$ 85.12
16	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 6.26
17	W11730064		Knob (single, (black Stainless)   (Replaces: W11635841)		Appelez-nous	-
18	W11245710		Screw   (Replaces: 9780274)			Immediately	$ 14.75
19	W11730062		Bezel (black Stainless)   (Replaces: W11635851)				$ 61.32
20	W10857622		Switch, Infinite (left Front And Right Front)   (Replaces: W10437092)			Immediately	$ 239.88
21	7201P07760		Gasket, Infinite Switch		Appelez-nous	-
22	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
23	W11846982		Screw   (Replaces: W10498399)				$ 11.75
14A	W11730078		Panel Upper, Manifold (stainless)   (Replaces: W11393096)				$ 384.21
15A	W11730070		Panel, Manifold End Cap (black Stainless (right))   (Replaces: W11361196)				$ 85.12
15B	W11730268		Panel, Manifold End Cap (stainless (left))   (Replaces: W11386024)				$ 84.98
15C	W11730267		Panel, Manifold End Cap (stainless (right))   (Replaces: W11386023)				$ 84.98
17A	W11730063		Knob (dual, (black Stainless))   (Replaces: W11635842)				$ 68.40
17B	W11730076		Knob (single, (stainless))   (Replaces: W11635836)				$ 101.49
17C	W11730074		Knob (dual, (stainless))   (Replaces: W11635837)			Immediately	$ 68.40
19A	W11730073		Bezel (stainless)   (Replaces: W11635850)			Immediately	$ 63.40
1A	W11638798		Quick Start Guide		Appelez-nous	-
1B	W11639164		Tech, Sheet		Appelez-nous	-
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	W11729952		Harness, Hidden Bake   (Replaces: W11585874)				$ 61.80
NI	W11729954		Harness, Front Dual   (Replaces: W11341202)				$ 300.25
NI	W11729968		Harness, Cooktop   (Replaces: W11341267)				$ 226.79
NI	W11729957		Harness, Wire   (Replaces: W11393541)			Immediately	$ 232.13
NI	W11730072		Harness, Main   (Replaces: W11334457)		Appelez-nous	-
