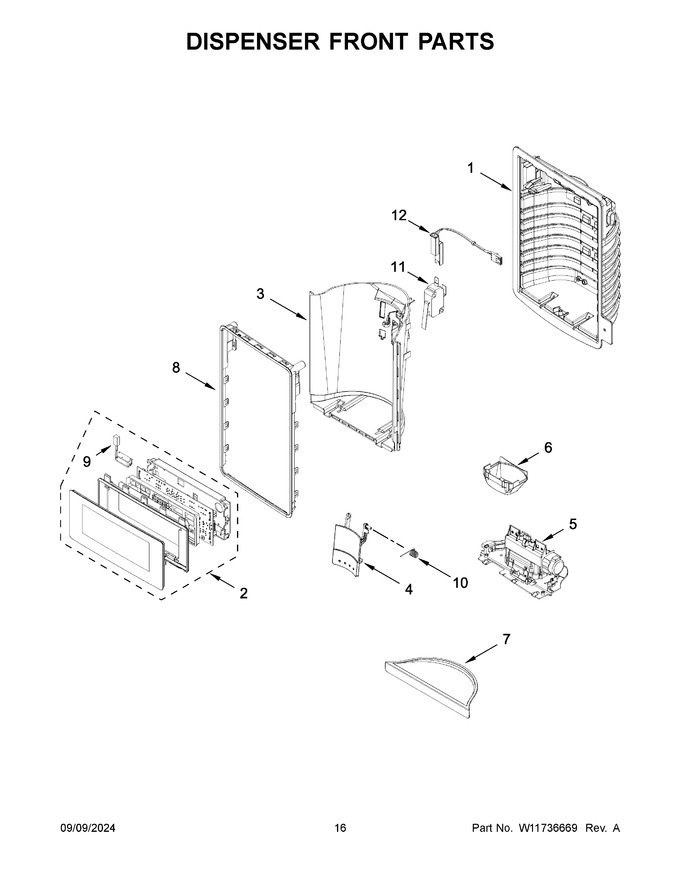

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI0820F7799426DB23CC858392159B72FE | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | W11751994 | Assembly, User Interface (black) (Replaces: W11698145) |
|
$ 411.05 | |||||
| 3 | W11109614 | Wall, Dispenser False (black) (Replaces: W10654549) |
|
$ 62.44 | |||||
| 4 | W11109510 | Assembly, Pad (black) (Replaces: W10663646) |
|
$ 82.38 | |||||
| 5 | W11572058 | Assembly, Seperator (Replaces: W11520265) |
|
Immediately | $ 68.42 | ||||
| 6 | WPW10435760 | Guide, Ice (Replaces: W10435760) |
|
Immediately | $ 21.55 | ||||
| 7 | W10909034 | Tray, Drip (black) (Replaces: W10654552) |
|
Immediately | $ 61.07 | ||||
| 8 | W11125932 | Ring, Trim (chrome) (Replaces: W10654551) |
|
$ 82.09 | |||||
| 9 | W11290115 | Assembly, Led (Replaces: W10470750) |
|
$ 76.01 | |||||
| 10 | W11109505 | Spring, Torsion (Replaces: W10663682) |
|
Immediately | $ 23.43 | ||||
| 11 | W11087492 | Switch, Limit (Replaces: W10403752) |
|
Immediately | $ 35.36 | ||||
| 12 | W11238426 | Assembly, Switch Jumper Wire (Replaces: W10712476) |
|
$ 148.61 |
