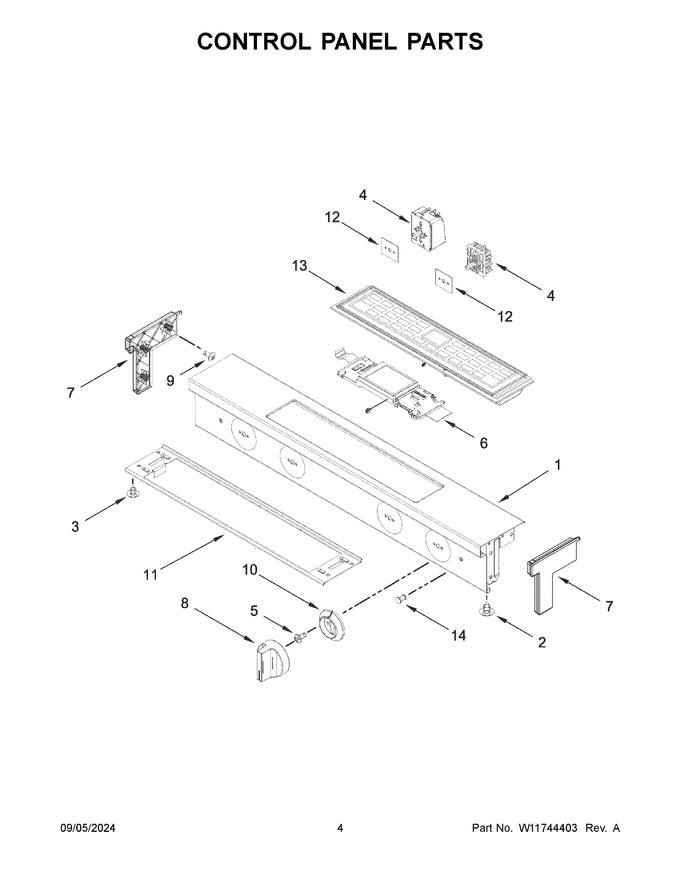

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11747779 | Console (white) (Replaces: W11300044) |
|
$ 372.60 | |||||
| 2 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 3 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 7.92 | ||||
| 4 | W10857622 | Switch, Infinite (left Front) (Replaces: W10437092) |
|
Immediately | $ 215.89 | ||||
| 5 | W11846982 | Screw (Replaces: W10498399) |
|
$ 10.58 | |||||
| 6 | W11747380 | Board, Control (black) (Replaces: W11734473) |
|
$ 399.42 | |||||
| 7 | W11747781 | Endpost, Console (white (left)) (Replaces: W11420181) |
|
$ 60.63 | |||||
| 8 | W11730491 | Knob (single, (white)) (Replaces: W11635844) |
|
$ 36.77 | |||||
| 9 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 13.28 | ||||
| 10 | W11730490 | Bezel (white) (Replaces: W11635854) |
|
- | |||||
| 11 | W11747359 | Mounting, Bracket (Replaces: W11291721) |
|
- | |||||
| 12 | 7201P07760 | Gasket, Infinite Switch |
|
- | |||||
| 13 | W11839350 | Assembly, User Interface (Replaces: W11333900) |
|
Immediately | $ 577.43 | ||||
| 14 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 4A | W11129442 | Switch, Infinite (right Front) (Replaces: W10437097) |
|
Immediately | $ 98.78 | ||||
| 4B | W10911303 | Switch, Infinite (left Rear, Right Rear) (Replaces: W10578768) |
|
Immediately | $ 103.74 | ||||
| 7A | W11747782 | Endpost, Console (white (right)) (Replaces: W11420179) |
|
$ 60.63 | |||||
| 8A | W11730493 | Knob (dual, (white)) (Replaces: W11635845) |
|
$ 36.77 | |||||
| 8B | W11747783 | Knob (triple, (white)) (Replaces: W11635848) |
|
- |
