01 - Cover Sheet


02 - Cabinet Parts


03 - Cabinet Trim Parts


04 - Refrigerator Liner Parts


05 - Freezer Liner And Air Flow Parts


06 - Icemaker And Ice Container Parts


07 - Refrigerator Shelf Parts


08 - Freezer Shelf Parts

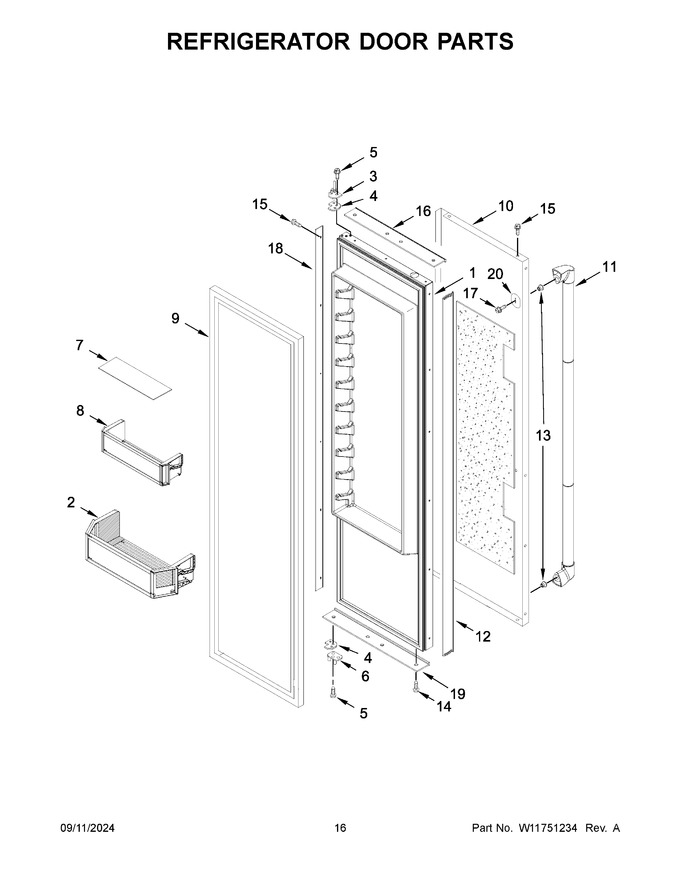

09 - Refrigerator Door Parts


10 - Freezer Door Parts


11 - Dispenser Parts


12 - Top Grille And Unit Cover Parts


13 - Upper Unit Parts


14 - Lower Unit And Tube Parts


15 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11797637		Door, Refrigerator   (Replaces: W10783291)				$ 796.04
2	W11450421		Bin, Gallon Door			Immediately	$ 377.03
3	W11673500		Hinge Assembly, Top   (Replaces: W10485980)			Immediately	$ 117.33
4	W11673500		Spacer, Door Hinge Bottom   (Replaces: 2316804)			Immediately	$ 117.33
5	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 7.77
6	2302878		Hinge Assembly, Bottom			Immediately	$ 81.91
7	W11454936		Mat, Door Bin (shallow)   (Replaces: W11454934)		Appelez-nous	-
8	W11450407		Bin, Shallow Door			Immediately	$ 369.84
9	W10800810		Gasket, Door (black)   (Replaces: W10776012)			Immediately	$ 317.12
10	W11797605		Skin, Door (stainless Filler (not Serviced-included With Skin))   (Replaces: W10756459)				$ 1,357.97
11	W11358123		Handle, Door (stainless)		Appelez-nous	-
12	W10758377		Spacer, Handle Side Door				$ 98.81
13	W11631830		Stud, Handle Mounting   (Replaces: W11564087)				$ 11.52
14	W10759522		Screw (stainless)   (Replaces: 488568)				$ 7.42
15	W11748041		Screw (stainless)   (Replaces: W11672062)		Appelez-nous	-
16	W10766560		Spacer, Door (top)		Appelez-nous	-
17	WP308544		Screw   (Replaces: 308544)			Immediately	$ 7.47
18	W10758378		Spacer, Hinge Side Door		Appelez-nous	-
19	W10766561		Spacer, Door (bottom)		Appelez-nous	-
20	W10127710		Plate, Handle Door			Immediately	$ 23.35
7A	W11454936		Mat, Door Bin (gallon)   (Replaces: W11454932)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
