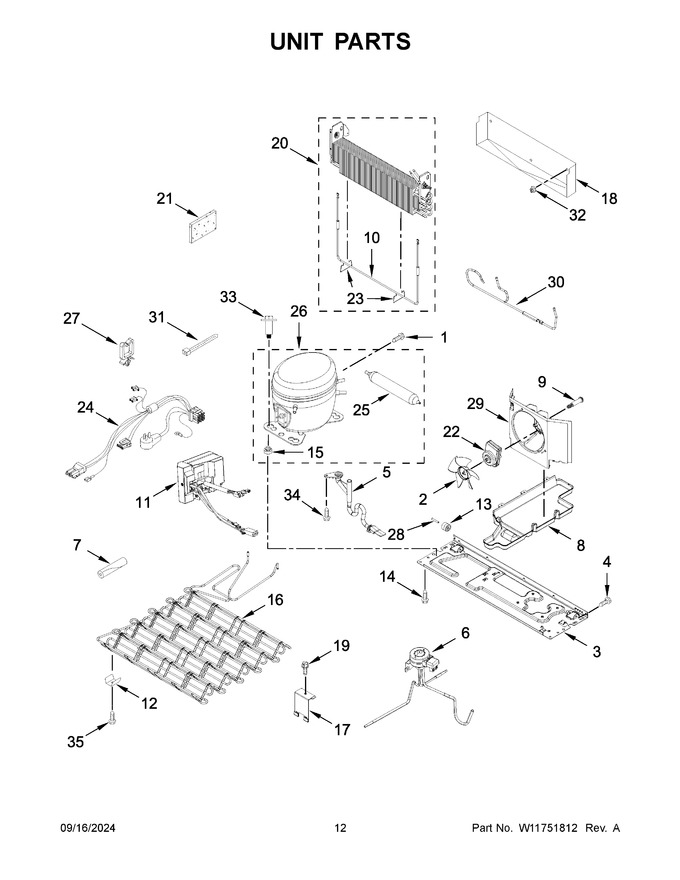

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10141625		Screw   (Replaces: W10141625)				$ 20.00
2	WP2188935		Blade, Fan   (Replaces: 2188935)			Immediately	$ 87.56
3	W11411853		Baseplate, Compressor		Appelez-nous	-
4	67006425		Screw   (Replaces: 12990511)			Immediately	$ 6.57
5	W11745620		Extension, Drain   (Replaces: W11541633)		Appelez-nous	-
6	W11753081		Assembly, 3 Way Valve (also Order The Following Lokring™ Parts)   (Replaces: W11596064)				$ 132.35
7	W11751592		Sleeve   (Replaces: W10303521)			Immediately	$ 19.19
8	W11225840		Tray, Evaporator   (Replaces: W10660727)			Immediately	$ 142.44
9	W10829281		Screw   (Replaces: W10622701)				$ 11.95
10	W11575359		Heater, Defrost   (Replaces: W11553968)				$ 107.73
11	W11747983		Assembly, Inverter Box   (Replaces: W11602266)		Appelez-nous	-
12	W10683556		Clip, Condenser   (Replaces: W10248621)				$ 17.44
13	12477102		Roller			Immediately	$ 6.64
14	12992101		Screw		Appelez-nous	-
15	WPW10169124		Grommet, Compressor   (Replaces: 10835903)				$ 6.80
16	W11751993		Condenser (also Order The Following Lokring™ Parts)   (Replaces: W11728996)		Appelez-nous	-
17	W10391376		Bracket, Valve				$ 31.53
18	W11408656		Tray, Drip				$ 41.02
19	W10142255		Screw		Appelez-nous	-
20	W11598434		Assembly, Evaporator And Heater (also Order The Following Lokring™ Parts)   (Replaces: W11394387)				$ 302.09
21	W11553819		Insulation, Sound Deadening   (Replaces: 2169104)			Immediately	$ 13.29
22	W11127829		Motor, Condenser Fan   (Replaces: W11505535)			Immediately	$ 203.92
23	W11380964		Clip, Heater				$ 16.68
24	W11679643		Harness, Unit (includes Power Cord)   (Replaces: W11306946)			Immediately	$ 118.30
25	W11109499		Drier (service Drier Without Dye) (also Order The Following Lokring™ Parts)   (Replaces: W10805035)			Immediately	$ 35.21
26	W11751358		Compressor (also Order The Following Lokring™ Parts)   (Replaces: W11602247)				$ 707.93
27	W11233642		Clip   (Replaces: 2223913)		Appelez-nous	-
28	67006434		Axle, Roller   (Replaces: 12477202)			Immediately	$ 7.11
29	WPW10406719		Shroud   (Replaces: W10406719)				$ 74.02
30	W11747984		Assembly, Suction Tube   (Replaces: W11616171)		Appelez-nous	-
31	WPW10339879		Tie, Wire   (Replaces: 2263990)				$ 7.47
32	10623002		Clip, Evaporator				$ 10.90
33	W11417341		Screw				$ 12.66
34	W10141518		Screw				$ 8.59
35	W11544659		Screw   (Replaces: W10142294)				$ 12.92
16A	W11504445		5/4 Nr Ms 00 (high Side To Condenser)			Immediately	$ 26.03
16B	W11504431		7/5 Nr Ms 00 (high Pressure Side To Compressor)			Immediately	$ 24.42
20A	W11506620		8 Nk Al 00 (suction Line To Evaporator)			Immediately	$ 28.89
20B	W11506620		8 Nk Al 00 (suction Line To Evaporator)			Immediately	$ 28.89
25A	W11504445		5/4 Nr Ms 00 (high Side To Condenser)			Immediately	$ 26.03
25B	W11506623		5 Nk Ms 00 (suction Line To Condenser)			Immediately	$ 19.80
26A	W11504431		7/5 Nr Ms 00 (high Pressure Side To Compressor)			Immediately	$ 24.42
26B	W11504415		8.5/8 Nr Ms 00 (suction Tube To Compressor)			Immediately	$ 23.30
26C	W11506621		6 Nk Ms 00 (charging Tube To Compressor)			Immediately	$ 19.80
26D	W11506635		Tube, Charging (1/4 In W/ Schrader Valve)			Immediately	$ 33.33
6A	W11506625		3 Nk Ms 00 (3-way Valve To Rc Capillary Tube - Cut/splice Near Old Valve Body)			Immediately	$ 18.85
6B	W11506625		3 Nk Ms 00 (3-way Valve To Rc Capillary Tube - Cut/splice Near Old Valve Body)			Immediately	$ 18.85
6C	W11504445		5/4 Nr Ms 00 (high Side To Condenser)			Immediately	$ 26.03
NI	ARIF9EF3E505B7CEB5AB5525882DBF27D97		Refrigerant Charge 56 Grams (r600a)		Appelez-nous	-
