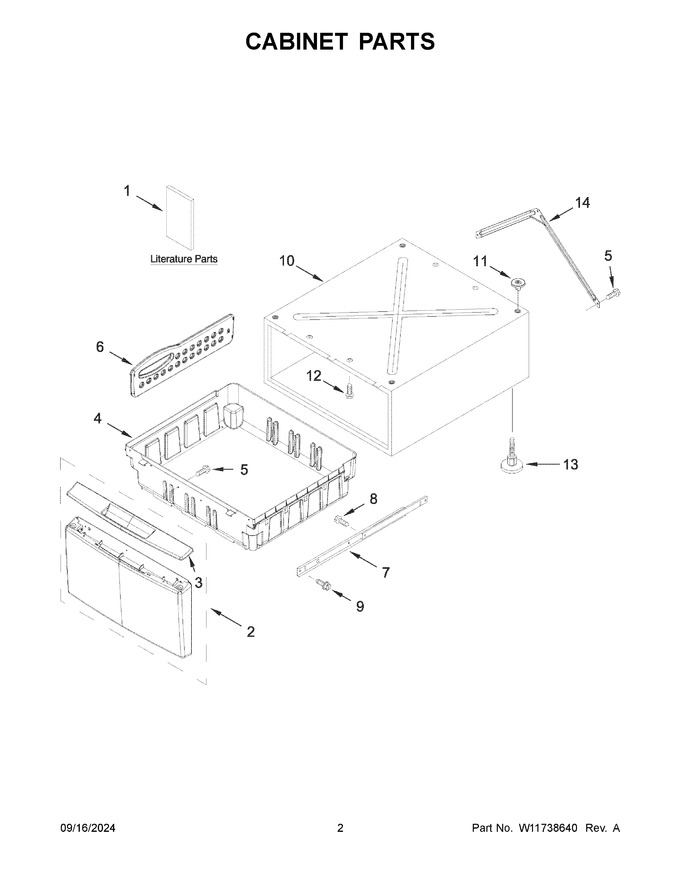

02 - Cabinet Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10347252 | Installation Instructions |
|
- | |||||
| 2 | W11750372 | Drawer Front Assembly (radiant Silver) (Replaces: W11720510) |
|
- | |||||
| 3 | W11202174 | Handle, Drawer (grey) |
|
$ 54.23 | |||||
| 4 | W11047790 | Drawer Bin (Replaces: W10844597) |
|
$ 205.26 | |||||
| 5 | WPW10213953 | Screw (Replaces: W10213953) |
|
Immediately | $ 7.55 | ||||
| 6 | WPW10189999 | Divider, Drawer (Replaces: W10189999) |
|
Immediately | $ 42.59 | ||||
| 7 | WP8578394 | Slide Assembly (Replaces: W11446052) |
|
$ 103.07 | |||||
| 8 | WP3388228 | Screw (Replaces: 3388228) |
|
$ 7.30 | |||||
| 9 | WP9740849 | Screw (Replaces: 9740849) |
|
$ 7.30 | |||||
| 10 | ARIBD05C36FE9C41F5CCC5AA149AF8AA604 | Cabinet (not Serviced) |
|
- | |||||
| 11 | WP8537982 | Pad (Replaces: 8537982) |
|
Immediately | $ 8.69 | ||||
| 12 | WPW10346892 | Screw (Replaces: W10346892) |
|
Immediately | $ 7.55 | ||||
| 13 | WP8563585 | Foot, Leveling (Replaces: 8563585) |
|
Immediately | $ 14.76 | ||||
| 14 | WPW10169550 | Brace, Rear (Replaces: W10169550) |
|
$ 41.10 | |||||
| 2A | W11748943 | Drawer Front Assembly (black) (Replaces: W11720514) |
|
- | |||||
| 3A | W11202177 | Handle, Drawer (black) |
|
- | |||||
| NI | W11742404 | Paint, Touch-up 1/2oz. (radiant Silver) |
|
Immediately | $ 58.56 | ||||
| NI | W10868014 | Paint, Touch-up 1/2oz. (black Lava/ Volcano Black) |
|
$ 31.41 | |||||
| NI | ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- |
