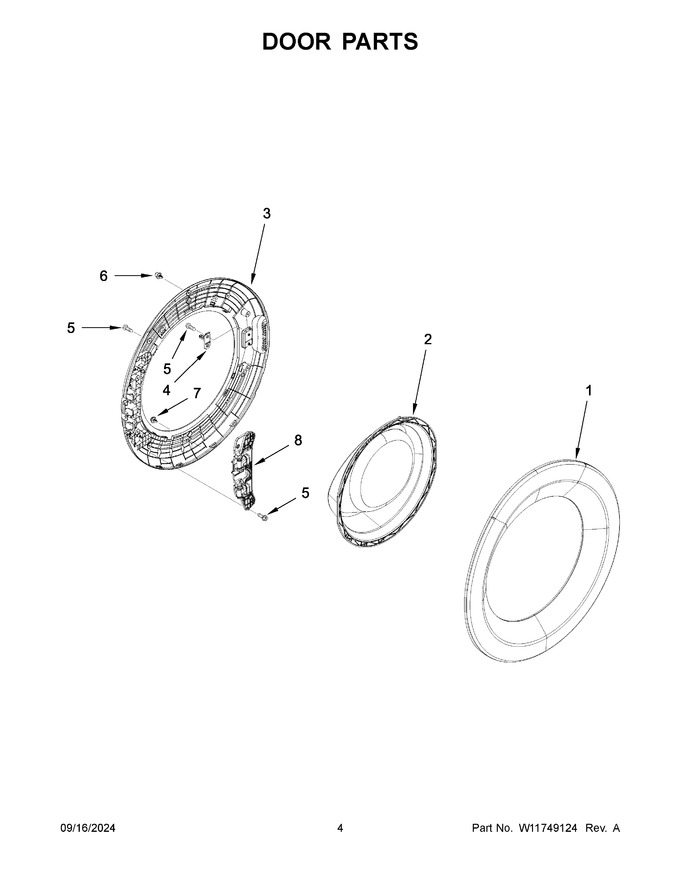

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11752155 | Outer Door (gray) (Replaces: W11711316) |
|
Immediately | $ 462.18 | ||||
| 2 | W11316777 | Door, Clear Insert (Replaces: W11171604) |
|
$ 282.33 | |||||
| 3 | W11703965 | Door, Inner (Replaces: W11664795) |
|
$ 280.64 | |||||
| 4 | W11316914 | Strike, Door (Replaces: W10921697) |
|
Immediately | $ 25.85 | ||||
| 5 | WP8534022 | Screw (Replaces: 8534022) |
|
$ 7.53 | |||||
| 6 | W11230200 | Bumper, Door (upper) |
|
$ 21.31 | |||||
| 7 | W11310051 | Bumper, Door (lower) (Replaces: W11178950) |
|
Immediately | $ 22.31 | ||||
| 8 | W11742046 | Hinge Assembly (Replaces: W11668720) |
|
Immediately | $ 146.08 |
