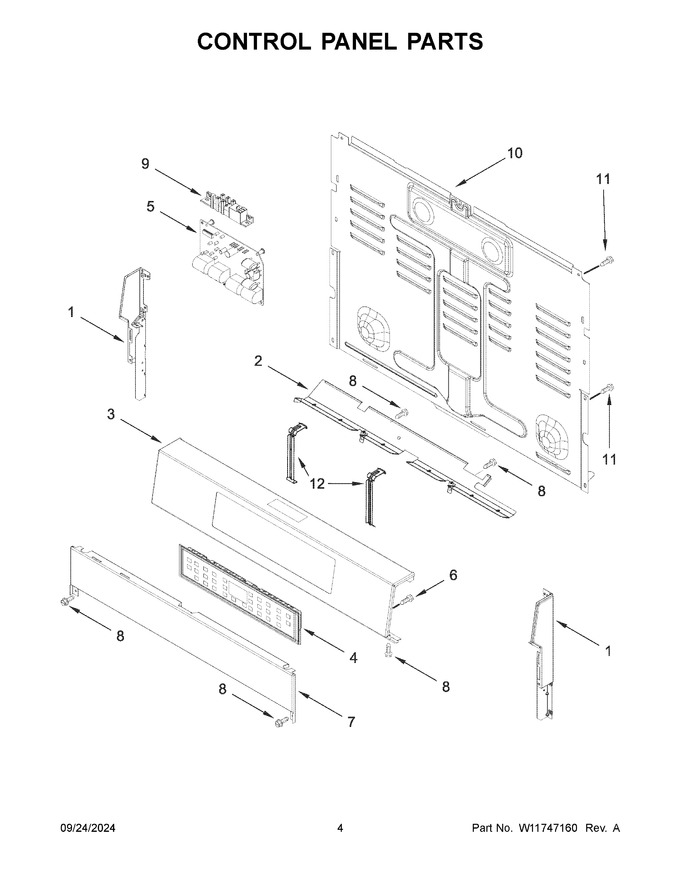

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11728387 | Endcap (stainless (left)) (Replaces: W11625424) |
|
$ 104.57 | |||||
| 2 | W11730262 | Shield, Heat (Replaces: W11363806) |
|
$ 78.37 | |||||
| 3 | W11753205 | Panel, Control (stainless) (Replaces: W11730197) |
|
Immediately | $ 320.25 | ||||
| 4 | W11730476 | User Interface Assembly (Replaces: W11436173) |
|
- | |||||
| 5 | W10898291 | Module, Spark Dsi (Replaces: W10818365) |
|
Immediately | $ 329.08 | ||||
| 6 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.80 | ||||
| 7 | W11730240 | Panel, Lower (stainless) (Replaces: W11625438) |
|
$ 201.31 | |||||
| 8 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 9 | W11703692 | Spark Module (Replaces: W11350452) |
|
Immediately | $ 86.99 | ||||
| 10 | W11727014 | Cover, Upper Rear (Replaces: W11393669) |
|
- | |||||
| 11 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 12 | W11728256 | Bracket, Control (Replaces: W11371599) |
|
- | |||||
| 1A | W11728386 | Endcap (stainless (right)) (Replaces: W11625421) |
|
Immediately | $ 104.57 |
