01 - Cover Sheet


02 - Top And Cabinet Parts

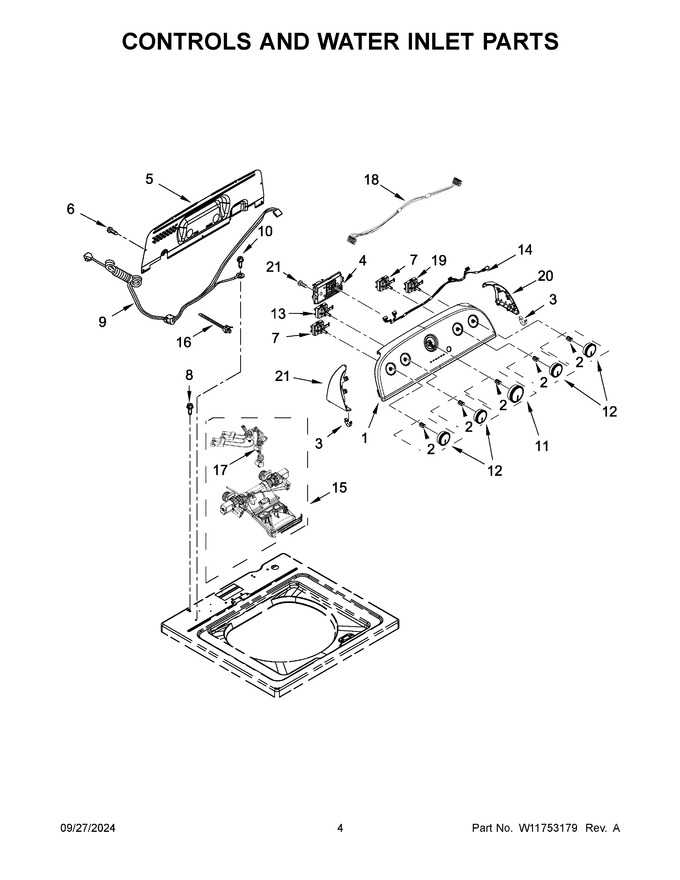

03 - Controls And Water Inlet Parts


04 - Basket And Tub Parts


05 - Gearcase, Motor And Pump Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11756286		Panel, Console   (Replaces: W11743011)		Appelez-nous	-
2	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 7.38
3	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
4	W11608056		Control Unit Assembly, Machine And Motor   (Replaces: W11578827)			Immediately	$ 331.59
5	W10552335		Panel, Console Rear Cover				$ 308.85
6	W11685943		Screw   (Replaces: W10660565)				$ 13.47
7	WPW10285512		Switch, Rotary Encoder (4 Position)   (Replaces: W10285512)			Immediately	$ 171.42
8	WPW10213953		Screw   (Replaces: W10213953)			Immediately	$ 6.80
9	W10877409		Cord, Power   (Replaces: W10737739)				$ 117.00
10	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 7.38
11	W11501455		Knob, Timer (white/metallic)   (Replaces: W10576634)				$ 41.20
12	W10576636		Knob, Control (white/metallic)		Appelez-nous	-
13	WPW10285518		Switch, Rotary Encoder (5 Position)   (Replaces: W10285518)			Immediately	$ 142.31
14	W11211519		Harness, Upper   (Replaces: W10694680)				$ 166.32
15	W11210463		Inlet Assembly, Water   (Replaces: W11101906)			Immediately	$ 137.07
16	WPW10339879		Tie, Cable   (Replaces: W10339879)				$ 7.47
17	W10701401		Harness, Valve				$ 160.32
18	W10786100		Harness, Jumper				$ 170.98
19	WPW10285511		Switch, Rotary Encoder (2 Position)   (Replaces: W10285511)			Immediately	$ 163.89
20	WPW10520780		End Cap (right) (white)   (Replaces: W10520780)				$ 57.91
21	WPW10520782		End Cap (left) (white)   (Replaces: W10520782)				$ 58.22
