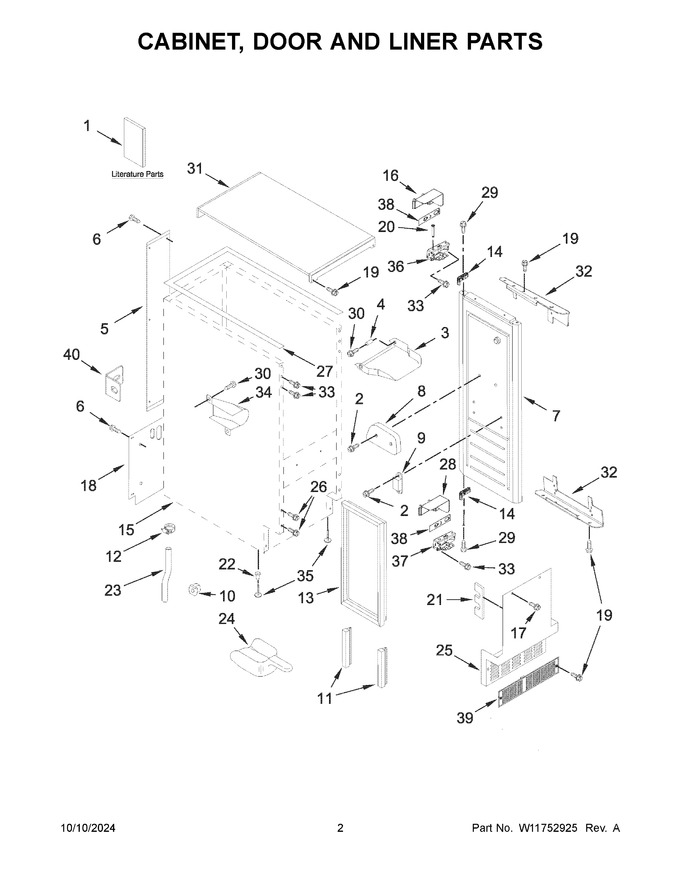

02 - Cabinet, Door And Liner Parts


03 - Evaporator, Grid, And Water Parts


04 - Pump Parts


05 - Control Panel Parts


06 - Unit Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11317176		Use And Care		Appelez-nous	-
2	8534077		Screw (white)		Appelez-nous	-
3	W10734102		Bin, Door		Appelez-nous	-
4	2185678		Spacer				$ 9.93
5	2217394		Cover, Wiring		Appelez-nous	-
6	WP489442		Screw   (Replaces: 489442)			Immediately	$ 10.34
7	W11346787		Door (black)   (Replaces: W11263351)				$ 799.91
8	W11309649		Cam,door		Appelez-nous	-
9	W11223751		Assembly, Magnetic Catch   (Replaces: W10529250)				$ 56.16
10	W10136999		Nut, Push-in		Appelez-nous	-
11	W11165597		Gasket, Bottom		Appelez-nous	-
12	W10670799		Clamp, Hose			Immediately	$ 22.38
13	WP2217294		Gasket, Door   (Replaces: 2217294)				$ 257.38
14	W11309752		Sidecap, Top (black)		Appelez-nous	-
15	ARI622974ECE62923C030B4A022E08C863C		Cabinet And Liner (not Serviced)		Appelez-nous	-
16	W11243472		Cover, Top Hinge(black)				$ 62.54
17	W10531302		Screw (black)		Appelez-nous	-
18	W11267679		Cover, Unit		Appelez-nous	-
19	W11788665		Screw (black)   (Replaces: 8534075)				$ 11.49
20	W11212764		Pin, Limit		Appelez-nous	-
21	W11546717		Pad, Foam   (Replaces: W11505640)		Appelez-nous	-
22	3400240		Nut		Appelez-nous	-
23	W10737551		Tube, Drain				$ 66.71
24	W11420408		Scoop   (Replaces: W10493422)				$ 25.75
25	W11197601		Grill, Front (black)				$ 108.54
26	WP273556		Screw   (Replaces: 357640)			Immediately	$ 7.59
27	W11624957		Gasket, Top Panel   (Replaces: 2217293)		Appelez-nous	-
28	W11243473		Cover, Bottom Hinge (black)				$ 62.54
29	348689		Screw				$ 70.26
30	3400886		Screw (stainless)				$ 5.65
31	W11246183		Panel, Top (black)				$ 453.62
32	W11243907		Bracket, Custom Panel Top				$ 106.52
33	W10495264		Screw (black)				$ 9.72
34	2185927		Holder, Scoop				$ 80.16
35	8193716		Leg, Leveling   (Replaces: 3374849)				$ 80.06
36	W11176752		Hinge Assembly, Top		Appelez-nous	-
37	W11176753		Hinge Assembly, Bottom		Appelez-nous	-
38	W11257325		Cover Cap, Hinge				$ 20.04
39	W11284404		Grill, Auxillary				$ 229.72
40	W11223901		Bracket, Cabinet				$ 31.88
14A	W11309756		Sidecap, Bottom(black)		Appelez-nous	-
1A	W11686968		Installation Guide		Appelez-nous	-
32A	W11223897		Bracket, Custom Panel Bottom				$ 114.71
