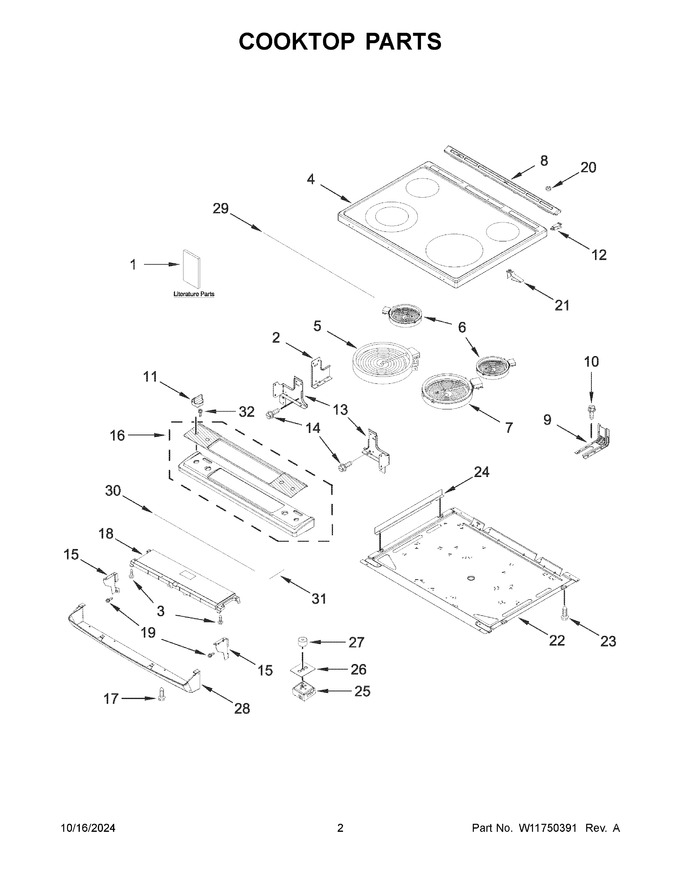

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11676962 | Quick Start Guide |
|
- | |||||
| 2 | W10814305 | Bracket, Console (center) |
|
- | |||||
| 3 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 13.28 | ||||
| 4 | W11048763 | Cooktop (white) (Replaces: W10825865) |
|
$ 502.03 | |||||
| 5 | W11517959 | Element (3000w Dual) (left Front) (Replaces: W11282542) |
|
Immediately | $ 132.01 | ||||
| 6 | W11171119 | Element (1200w) (left Rear And Right Rear) (Replaces: 8273994) |
|
Immediately | $ 203.06 | ||||
| 7 | WP8273993 | Element (1800w) (right Front) (Replaces: 8273993) |
|
Immediately | $ 258.96 | ||||
| 8 | W10636527 | Vent, Trim Top (white) |
|
$ 226.20 | |||||
| 9 | W11502257 | Bracket, Anti-tip (Replaces: W11379947) |
|
Immediately | $ 20.73 | ||||
| 10 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 11 | W10844797 | Knob (white) |
|
Immediately | $ 71.06 | ||||
| 12 | W10162253 | Brace, Corner (left) |
|
$ 66.72 | |||||
| 13 | W10814303 | Support, Cooktop (left) |
|
- | |||||
| 14 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 15 | W10547960 | Bracket, Console (left) |
|
$ 20.90 | |||||
| 16 | W11048162 | Console (white) (Replaces: W10825349) |
|
Immediately | $ 477.48 | ||||
| 17 | W10516115 | Screw |
|
$ 13.07 | |||||
| 18 | W11594269 | Control, Electronic (lcx) (white) (Replaces: W11515101) |
|
$ 339.62 | |||||
| 19 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 20 | W11690600 | Bumper (Replaces: W10854253) |
|
Immediately | $ 13.42 | ||||
| 21 | W11663556 | Spring, Element (Replaces: W11600012) |
|
Immediately | $ 13.36 | ||||
| 22 | W10536275 | Pan, Radiant |
|
$ 163.45 | |||||
| 23 | 3196172 | Screw |
|
Immediately | $ 12.12 | ||||
| 24 | W11175271 | Bracket, Radiant |
|
$ 70.12 | |||||
| 25 | W10911303 | Switch, Infinite (left Rear And Right Rear) (Replaces: W10578768) |
|
Immediately | $ 103.74 | ||||
| 26 | 7201P07760 | Gasket, Infinite Switch |
|
- | |||||
| 27 | W10702912 | Gasket, Switch Stem |
|
$ 26.84 | |||||
| 28 | W10894127 | Panel, Front (white) (Replaces: W10816942) |
|
Immediately | $ 482.27 | ||||
| 29 | W10802441 | Gasket, Console And Cooktop (Replaces: W10612719) |
|
Immediately | $ 20.46 | ||||
| 30 | W10802457 | Gasket, Console (Replaces: W10689101) |
|
$ 19.20 | |||||
| 31 | W11744482 | Gasket, Console Short (Replaces: W10689102) |
|
$ 20.63 | |||||
| 32 | W10674068 | Screw |
|
$ 21.95 | |||||
| 12A | W10162252 | Brace, Corner (right) |
|
$ 70.73 | |||||
| 13A | W10814304 | Support, Cooktop (right) |
|
- | |||||
| 15A | W10547961 | Bracket, Console (right) |
|
$ 20.90 | |||||
| 1A | W11432248 | Owners Manual |
|
- | |||||
| 1B | W11326822 | Tech Sheet |
|
- | |||||
| 25A | W10857622 | Switch, Infinite (left Front) (Replaces: W10437092) |
|
Immediately | $ 215.89 | ||||
| 25B | W11661906 | Switch, Infinite (right Front) (Replaces: W10843843) |
|
Immediately | $ 21.38 | ||||
| NI | 7111P01760 | Clamp, Wire |
|
- | |||||
| NI | W10664316 | Clip, Harness (cooktop) |
|
$ 18.87 | |||||
| NI | W11316896 | Harness, Cooktop (Replaces: W11190436) |
|
$ 204.85 | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 18.48 | |||||
| NI | W11316895 | Harness, Console (Replaces: W11226233) |
|
$ 185.83 | |||||
| NI | ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | |||||
| NI | W11739787 | Harness, Main (Replaces: W11648725) |
|
Immediately | $ 313.70 |
