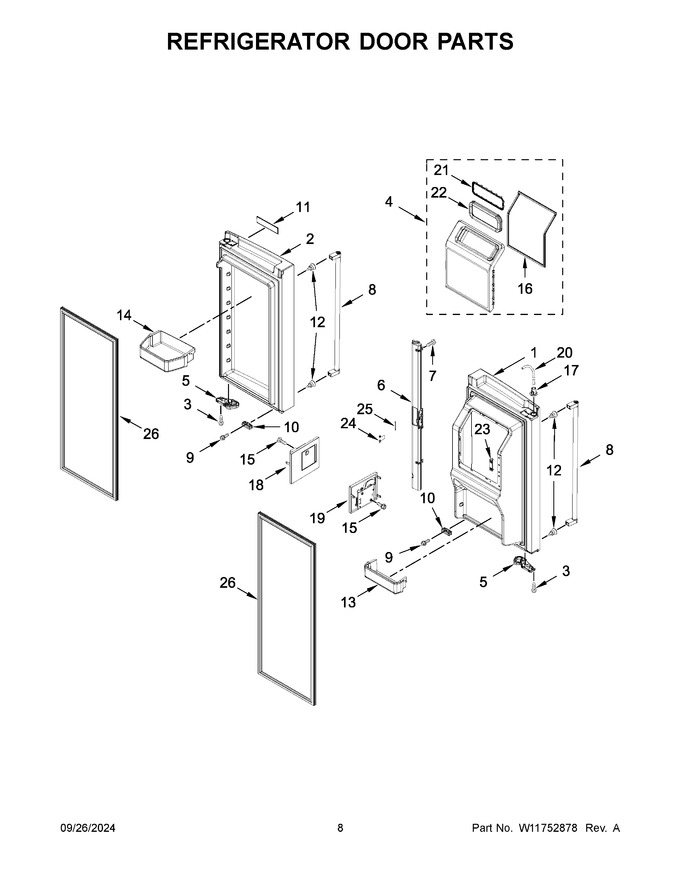

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11740849 | Door, Refrigerator Left Hand (includes Door Gasket) (black Stainless) (Replaces: W11699377) |
|
$ 1,021.40 | |||||
| 2 | W11740851 | Door, Refrigerator Right Hand (black Stainless) (Replaces: W11699362) |
|
$ 693.36 | |||||
| 3 | WPW10238319 | Screw (Replaces: W10238319) |
|
$ 7.18 | |||||
| 4 | W11399564 | Door, Ice (Replaces: W11261138) |
|
Immediately | $ 284.00 | ||||
| 5 | W10904595 | Latch, Door (left Hand) (Replaces: W10712952) |
|
$ 16.24 | |||||
| 6 | W11747785 | Mullion, Door (black) (Replaces: W11696582) |
|
- | |||||
| 7 | W11311945 | Screw (Replaces: 12990204) |
|
$ 13.25 | |||||
| 8 | W11497229 | Handle, Door (stainless) (Replaces: W11339538) |
|
Immediately | $ 167.56 | ||||
| 9 | WP98165 | Screw (Replaces: 12990504) |
|
$ 7.71 | |||||
| 10 | W10407187 | Bumper, Door (black) |
|
$ 43.51 | |||||
| 11 | W10876598 | Nameplate (grey) (Replaces: W10765861) |
|
Immediately | $ 65.54 | ||||
| 12 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 15.35 | ||||
| 13 | W11680598 | Trivet, 2 Liter (Replaces: W11373152) |
|
Immediately | $ 94.77 | ||||
| 14 | W11680597 | Bucket, Gallon (Replaces: W11373151) |
|
Immediately | $ 164.45 | ||||
| 15 | 2006254 | Screw (Replaces: 12993001) |
|
$ 12.41 | |||||
| 16 | W11625019 | Gasket, Ice Door (Replaces: W10567561) |
|
$ 46.55 | |||||
| 17 | W11315303 | Clip, Tube |
|
- | |||||
| 18 | W11748342 | Board And Cover Assembly, Emitter (Replaces: W11554029) |
|
- | |||||
| 19 | W11748343 | Board And Cover Assembly, Receiver (Replaces: W11554031) |
|
- | |||||
| 20 | WPW10499015 | Tube, Water (Replaces: W10499015) |
|
$ 115.89 | |||||
| 21 | W11504381 | Retainer, Ice Chute (Replaces: W10562839) |
|
$ 14.53 | |||||
| 22 | W11504378 | Gasket, Ice Chute (Replaces: W11261135) |
|
$ 22.51 | |||||
| 23 | W11684620 | Vent, Thermistor (Replaces: W10646867) |
|
Immediately | $ 20.84 | ||||
| 24 | WP2198635 | Spring, Door (Replaces: 2198635) |
|
$ 82.29 | |||||
| 25 | W10331749 | Pin, Door |
|
- | |||||
| 26 | W11544658 | Gasket, Door (black) (Replaces: W10873942) |
|
Immediately | $ 262.77 | ||||
| 5A | W11212164 | Latch, Door (right Hand) (Replaces: W10712953) |
|
$ 15.83 |
