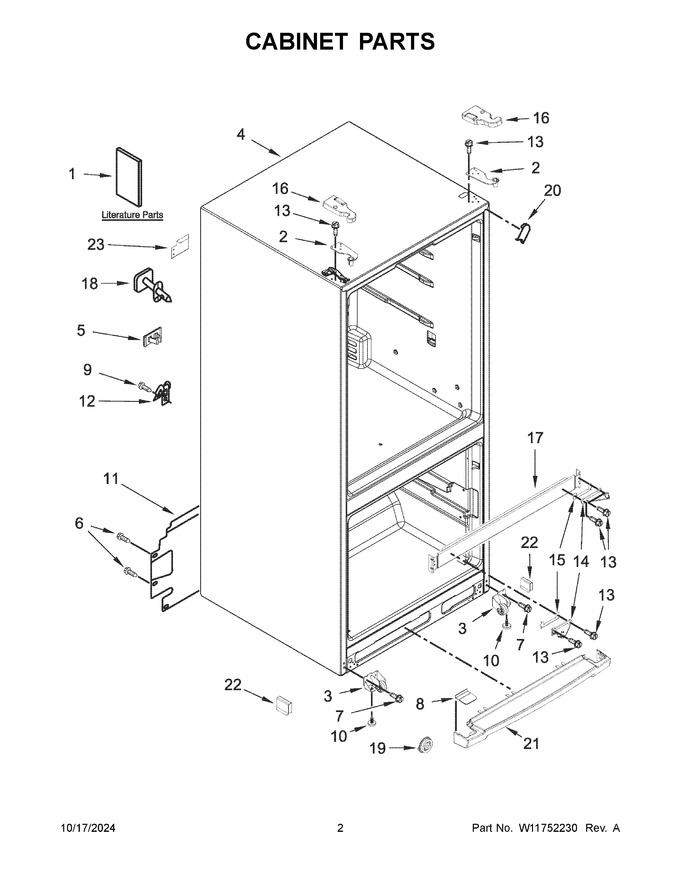

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11647960 | Energy Guide |
|
- | |||||
| 2 | W10546298 | Hinge, Top (left Hand) |
|
$ 63.14 | |||||
| 3 | WPW10359256 | Roller, Front (left Hand) (Replaces: W10359256) |
|
Immediately | $ 46.65 | ||||
| 4 | ARI0E0595B5C30868CDEDF430A9DC24D80C | Cabinet (not A Serviceable Part) |
|
- | |||||
| 5 | W11501419 | Clip, Tube (Replaces: W10352217) |
|
Immediately | $ 10.89 | ||||
| 6 | WP488729 | Screw (Replaces: 2262176) |
|
Immediately | $ 7.45 | ||||
| 7 | 3400524 | Screw (Replaces: W10142287) |
|
$ 11.95 | |||||
| 8 | WPW10353932 | Cover, Toe Grille (grey) (Replaces: W10353932) |
|
$ 76.95 | |||||
| 9 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.34 | ||||
| 10 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 7.42 | ||||
| 11 | W11700600 | Cover, Unit (Replaces: W11407731) |
|
Immediately | $ 56.53 | ||||
| 12 | W11234470 | Clamp, Power Cord (Replaces: W11242280) |
|
$ 19.91 | |||||
| 13 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 14 | W10770878 | Hinge, Center (left Hand) |
|
Immediately | $ 74.07 | ||||
| 15 | WPW10450363 | Shim, Center Hinge (Replaces: W10450363) |
|
Immediately | $ 22.81 | ||||
| 16 | W10465768 | Cover, Hinge (left Hand (grey)) |
|
$ 18.48 | |||||
| 17 | ARIAE303BB782E87BFFA93CA33623AF4979 | Rail, Center (not Serviced) |
|
- | |||||
| 18 | ARIB7DDFA80728E46F35EDDE3EECCB1BBEF | Fitting, Water Tube (not Serviced) |
|
- | |||||
| 19 | W10331226 | Drum, Toe Grille |
|
$ 42.68 | |||||
| 20 | W11219642 | Corner Filler (grey) (Replaces: W11189126) |
|
Immediately | $ 11.57 | ||||
| 21 | WPW10353935 | Grille (grey) (Replaces: W10353935) |
|
Immediately | $ 146.81 | ||||
| 22 | WP2174706 | Clip, Roller (Replaces: 2174706) |
|
$ 10.38 | |||||
| 23 | W11528668 | Access Cover, Valve (Replaces: W11458717) |
|
- | |||||
| 14A | W11417064 | Hinge, Center (right Hand) (Replaces: W10770877) |
|
Immediately | $ 54.66 | ||||
| 16A | W10465767 | Cover, Hinge (right Hand (grey)) |
|
Immediately | $ 19.31 | ||||
| 1A | W11512269 | Use And Care Guide |
|
- | |||||
| 2A | W11573371 | Hinge, Top (right Hand) (Replaces: W10546299) |
|
Immediately | $ 22.38 | ||||
| 3A | WPW10359255 | Roller, Front (right Hand) (Replaces: W10359255) |
|
Immediately | $ 90.58 |
